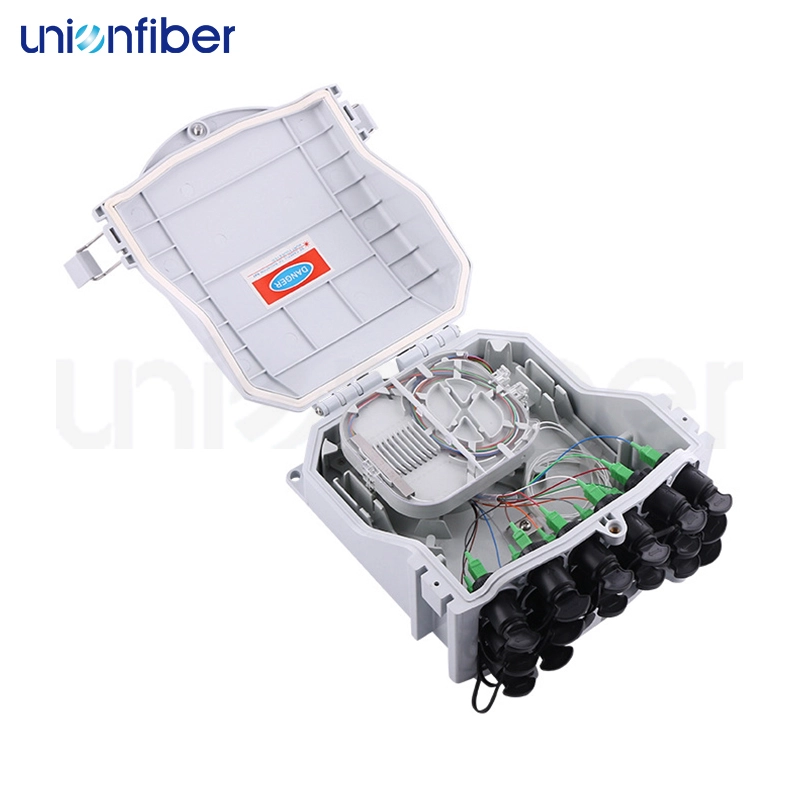

16 port Fiber Distribution Box fiber access termination Box is able to hold up to 16subscribers and24splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Product Description
16 port Fiber Distribution Box fiber access termination Box is able to hold up to 16subscribers and24splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Product Features
Product Parameters
Project | Technical indicators (Span 100m) | ||||||||
Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
Max.fiber countsper tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Units(Tubes orFillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
CableDiameter (mm ) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 | 13.7 | 16.3 |
Reference weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 | 142 | 195 |
Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||||
Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||||
BendingRadius(mm) | Static/Dynamic:10D/20D | ||||||||
Temperature(℃) | Storage /Operation:-40℃~+70℃ |
Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
FTTH,CATV.Local area networks.Data communication networks.Wall mounted for indoor and outdoor application.
packaging
The 16 port Fiber Distribution Box is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
We are a professional manufacturer of fiber optic products, Our optical cables are mainly divided into indoor optical cables and outdoor optical cables.
● Standard Production Procedure, High Standard Test Requriment, Strict QC, 100% Inspection at Each Procedure.
● We have ISO certificate for our company and product, we have CPI certificate for EU market.
● Long Time Warranty, Fiber Cable Life-time After Service.
● OEM & ODM, Samples Available in 1~3 days.
● Excellent global market competitiveness.
