ADSS Fiber Optic Cable Single Sheath Double ADSS Span 100m 24 Core 48 Core 72 Core 96 Core Cable
The ADSS double-jacketed optical cable is a high-performance communication cable product. It uses a loose tube made of high modulus plastic, filled with gel inside to properly place the optical fibers. The unique structural design of the optical cable takes the non-metallic strengthening member as the center. The tubes and fillers are stranded to form the cable core. The cable core is filled with water-blocking compound and a PE inner jacket is extruded. Then, the tough aramid yarn is twisted around the inner jacket for reinforcement. Finally, the PE outer jacket or AT outer jacket is completed.
Product Description
This product has characteristics such as tensile resistance and waterproofing. The advantages lie in its reliable structural design, which ensures the stability and durability of signal transmission and can adapt to various complex environmental conditions.
It is suitable for fields such as power communication and can play an important role in scenarios such as overhead lines. It provides a strong guarantee for smart grid construction and high-speed communication. It is an indispensable key product in communication engineering, especially performing outstandingly in projects requiring high reliability and long-distance communication.
Product Features
Product Parameters
| Project | Technical indicators (Span 100m) | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber countsper tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes orFillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| CableDiameter (mm ) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 | 13.7 | 16.3 |
| Reference weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 | 142 | 195 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||||
| BendingRadius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+70℃ | ||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Diagram
packaging
The ADSS optical cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.

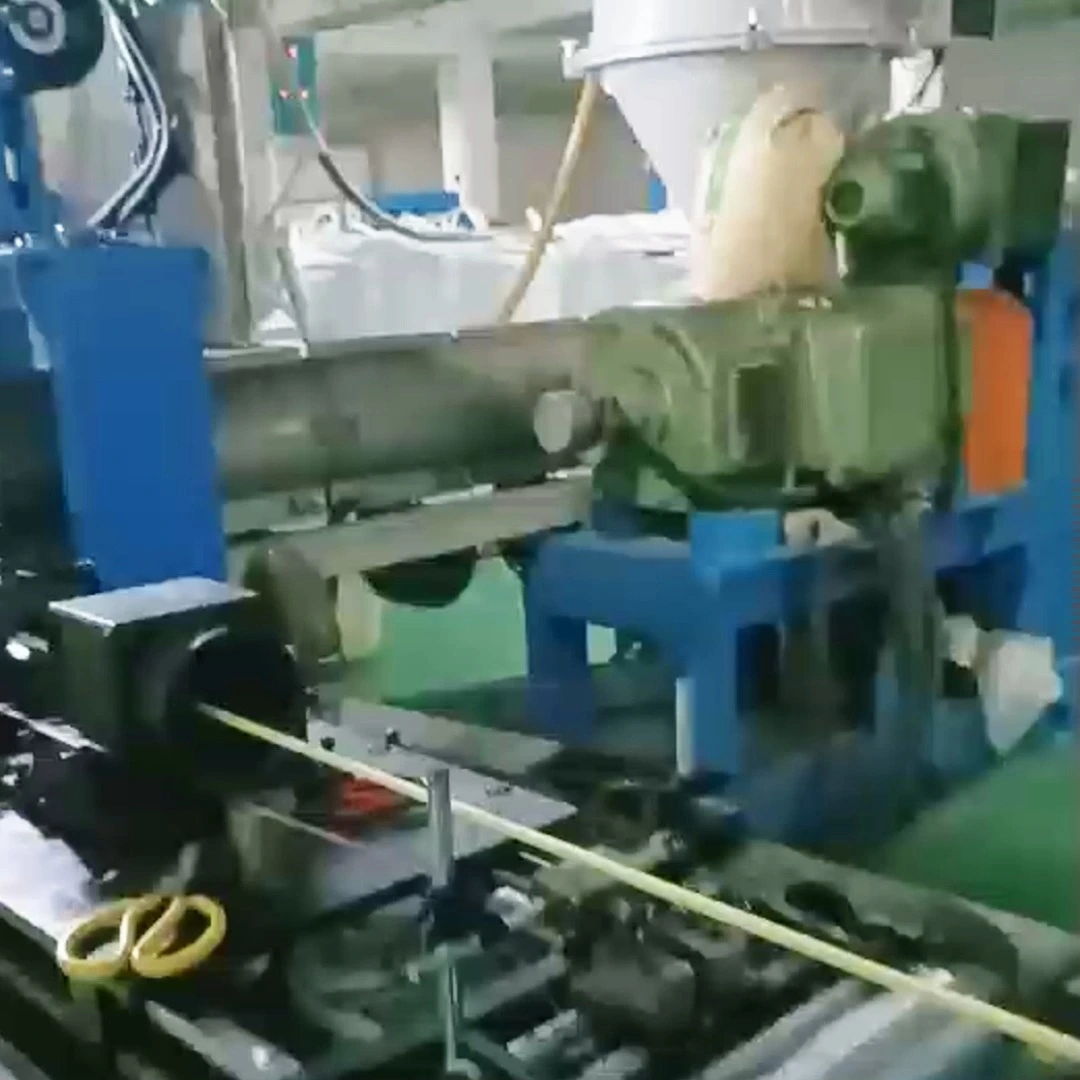

We are a professional manufacturer of fiber optic products, Our optical cables are mainly divided into indoor optical cables and outdoor optical cables.
● Standard Production Procedure, High Standard Test Requriment, Strict QC, 100% Inspection at Each Procedure.
● We have ISO certificate for our company and product, we have CPI certificate for EU market.
● Long Time Warranty, Fiber Cable Life-time After Service.
● OEM & ODM, Samples Available in 1~3 days.
● Excellent global market competitiveness.
