Wholesale Outdoor Optical Cable Company
Company Advantages
· Unionfiber outdoor optical cable is elaborately crafted from the sophisticated production equipment.
· With the support from our experts, the product is in strict compliance with the industry quality standards.
· Zhengzhou Union Communication Technology Co., Ltd. strictly follows the ISO9001 international quality certification system for production management.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||||
|
Counts |
2-30 |
32-36 |
38-60 |
62-72 |
74-96 |
98-120 |
122-144 |
146-216 |
218-288 |
|
Max.fiber counts per tube |
6 |
6 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Units(Tubes or Fillers) |
6 |
6 |
6 |
6 |
8 |
10 |
12 |
18 |
24 |
|
Cable Diameter(mm) |
9.8 |
9.8 |
10.7 |
10.7 |
12.0 |
13.4 |
14.9 |
15.3 |
17.3 |
|
Reference weight(Kg/km) |
102 |
102 |
121 |
121 |
149 |
182 |
221 |
227 |
289 |
|
Fiber Type |
G652D G655 G657 50/125 62.5/125 |
||||||||
|
Tensile Strength(N) |
Long/Short Term:600/1500 |
||||||||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||||||
|
Bending Radius(mm) |
Static/Dynamic:12.5D/25D |
||||||||
|
Temperature(℃) |
Storage /Operation:-40℃~+70℃ |
||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

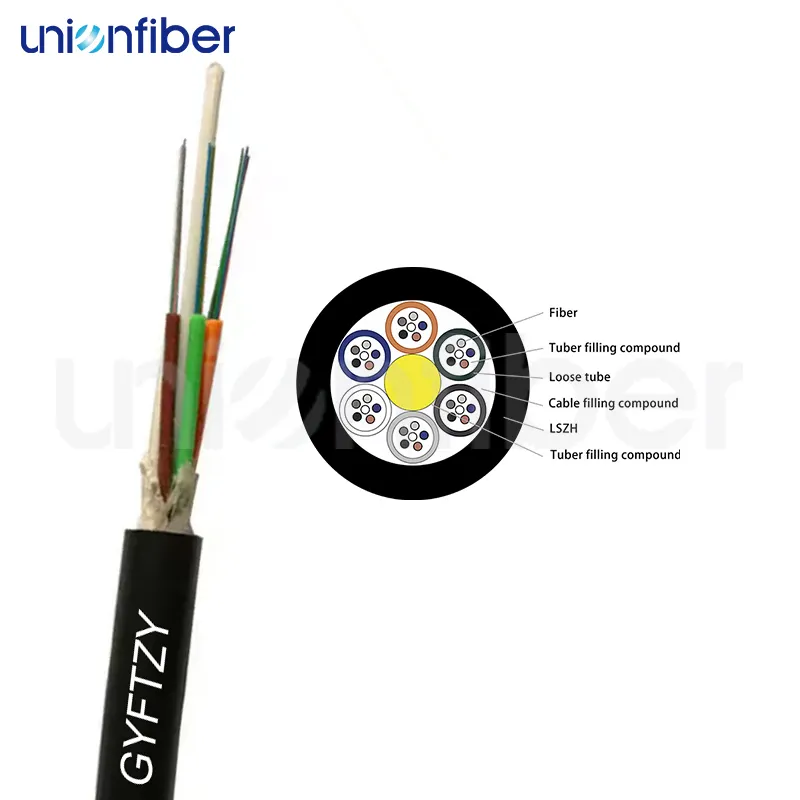

Product Diagram
packaging
The GYFTZY Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
Company Features
· Zhengzhou Union Communication Technology Co., Ltd. is highly praised as a powerful and professional manufacturer. We have a presence in developing and manufacturing outdoor optical cable.
· The company is blessed with an excellent management team. The employees in this team are experienced in reasonably arranging production plans and managing all production processes.
· Zhengzhou Union Communication Technology Co., Ltd. will provide a comprehensive outdoor optical cable solution for our customers. Check now!
Enterprise Advantages
Our company has a number of employees who have been engaged in the production of products for many years. The employees have rich production experience and make a strong guarantee for the quality of our products.
Our high cost performance, standardized market operation and good after-sales service have been unanimously recognized by our customers and peers.
Our company always adheres to the enterprise spirit of 'rigorous, responsible and efficient'. Besides, we abide by the business philosophy of 'seeking truth and being pragmatic, developing and innovating, advancing with the times'. In the future, we actively explore new markets and increase market share, as well as provide customers with high-quality products and services.
Through the rapid development for years, Unionfiber has now developed into a modern enterprise with the scientific management system and superb processing technology.
Unionfiber's products are sold throughout the country and exported to Southeast Asia, Africa, and other regions. They are deeply loved and sought after by local customers.
