Product Name:
GYFTZS Fiber Optical Cable
Fiber Count:
2-288 core
Brand Name:
Weunion/Unionfiber
Certification:
ISO9001,ROHS,CE,CPR
Packaging:
Wooden Drum
Inquiry

Company Advantages

· Keeping in pace with trends, 2 core outdoor fiber optic cable is especially unique in its design.

· Our staff implements 100% inspection to make sure the product is in good conditions and of high quality.

· Zhengzhou Union Communication Technology Co., Ltd.'s production capacity can meet the market's ravenous demand for 2 core outdoor fiber optic cable.

Product Description

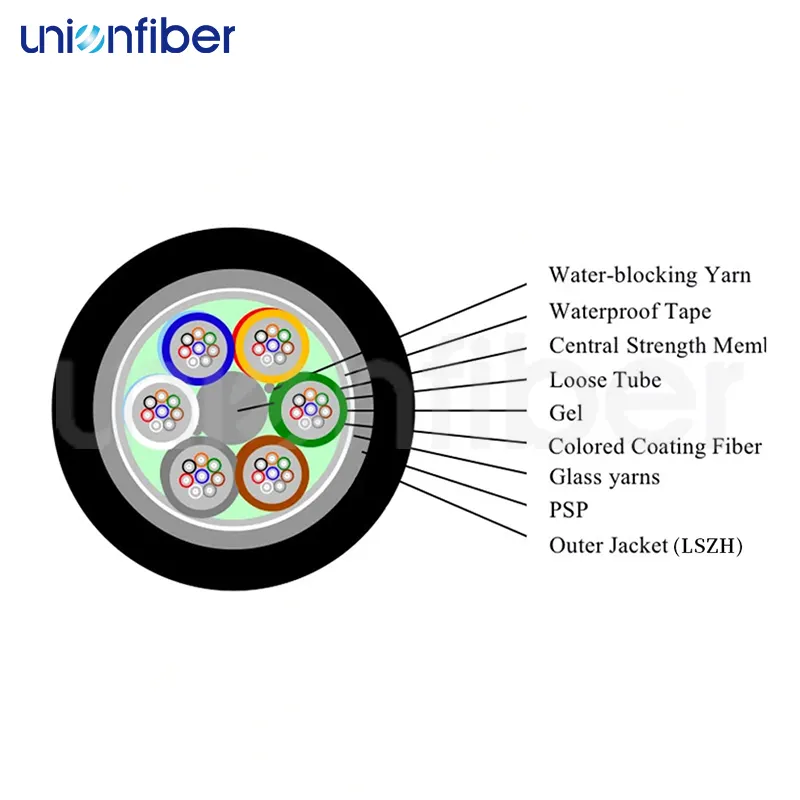

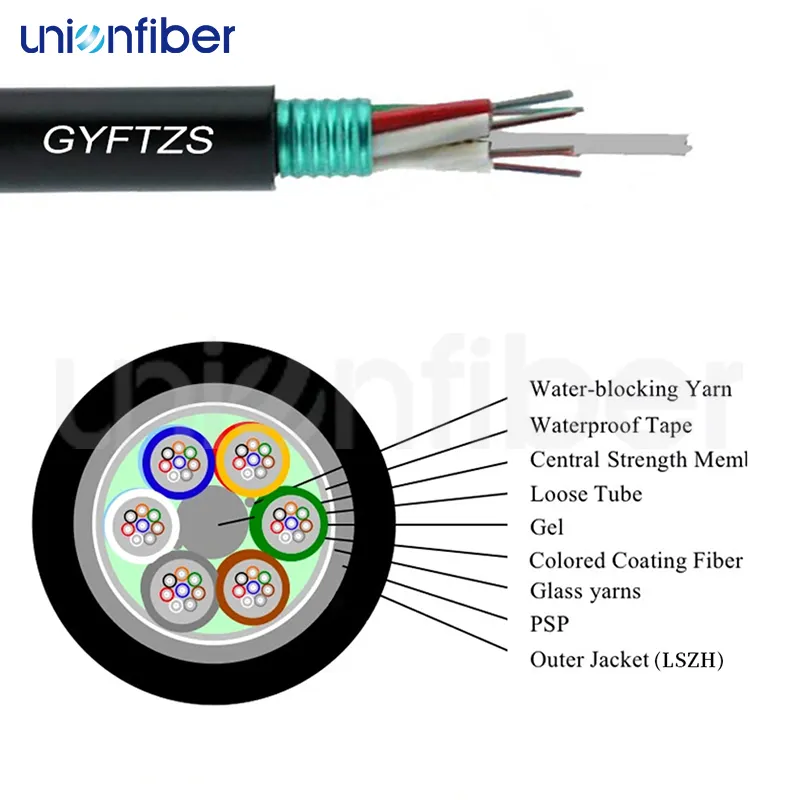

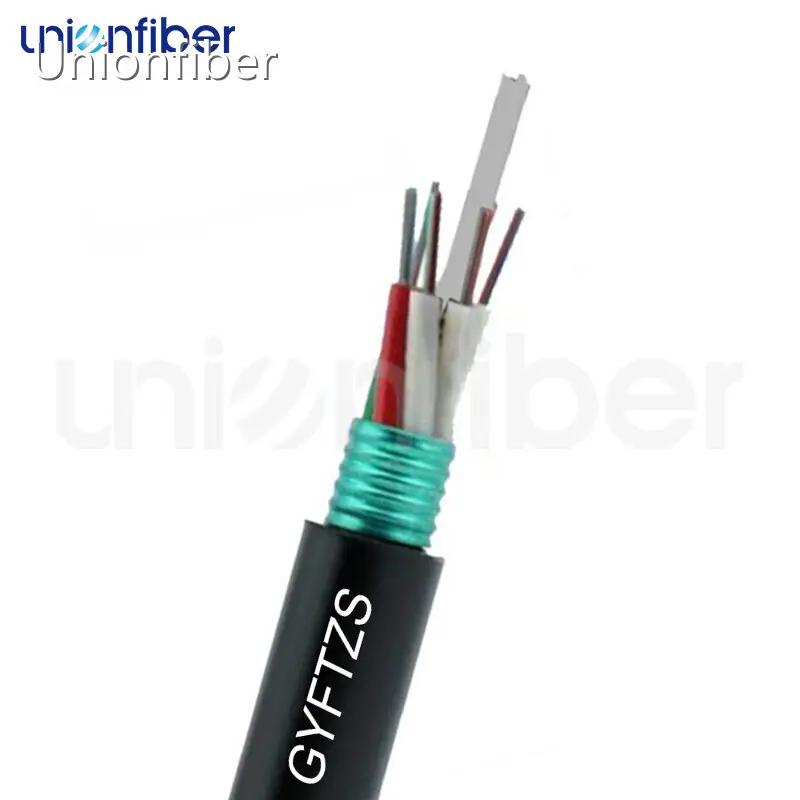

The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a non-metallic central strength member(FRP) to form a cable core. The core is filled with water blocking compound and armored with corrugated steel tape(CST). Then a LSZH outer sheath is extruded.

Download
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 4

Product Features

Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 5
01
Good mechanical and thermal performance.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 6
02
FRP as the central strength member.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 7
03
Hydrolysis resistant loose tube.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 8
04
Tube filling compound ensures critical protection of fiber.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 9
05
Specially designed stranded compact structure eliminating contraction of tubes.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 10
06
LSZH sheath ensuring good flame-retardant performance.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 11
07
Crush resistance and flexibility.
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 12
08
Water-blocking measures: - Loose tube gel-filled -100% cable filling compound - Corrugated steel tape (CST) enhancing moisture-proof.

Product Parameters

Project

Technical indicators

Counts

2-30

32-36

38-60

62-72

74-96

98-120

122-144

146-216

218-288

Max.fiber counts per tube

6

6

12

12

12

12

12

12

12

Units(Tubes or Fillers)

6

6

6

6

8

10

12

18

24

Cable Diameter(mm)

10.4

10.4

11.3

11.3

12.6

14.0

15.5

16.0

18.0

Reference weight(Kg/km)

124

124

144

144

175

211

253

256

320

Fiber Type

G652D G655 G657 50/125 62.5/125

Tensile Strength(N)

Long/Short Term:600/1500

Crush Resistance(N/100mm)

Long/Short Term:300/1000

Bending Radius(mm)

Static/Dynamic:12.5D/25D

Temperature(℃)

Storage /Operation:-40℃~+70℃

Parameter Unit 9/125 SMF-OS2 62.5/125 MMF-OM1 50/125 MF-OM2 50/125 MMF-OM3 50/125 MMF-OM4
Attenuation dB/Km

1310nm≤0.35

1550nm≤0.22

850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8
Dispersion Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

- - - -
Fiber Diameter um 9/125 um 50/125 um 50/125 um 50/125 um 50/125 um
Effective Modal Bandwidth EMB - 850 nm≥200 850 nm≥200 850 nm≥200 850 nm≥200
Zero Dispersion Wavelength Nm 1300-1324 - - - -
Zero Dispersion Slope Ps/nm.km ≤0.095 - - - -
Fiber Cutoff Wavelength Um ≤1260 - - - -
Mode Field Diameter Um

@1310nm-9.2±0.4

@1550nm-10.4±0.8

- - - -
Mode Field Concentricity Um ≤0.8 - - - -
Cladding Diameter Um 125±1.0 125±2.0 125±2.0 125±2.0 125±2.0
Cladding Non-circularity % ≤1.0 ≤2.0 ≤2.0 ≤2.0 ≤2.0
Coating/Cladding Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
Concentricity Error Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
Coating Diameter dB/Km 245±10 245±10 245±10 245±10 245±10

Application

Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 13
Overhead
Widely used in power transmission and distribution systems for communication between substations and control centers
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 14
Pipe
Suitable for smart grid applications, enabling real-time monitoring and control of power grids
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 15
Underwater
Can withstand harsh outdoor conditions and provide reliable high-speed data transmission in power and telecommunications industries
Unionfiber 2 Core Outdoor Fiber Optic Cable GYFTZS Fiber Optical Cable 2 Core Outdoor Fiber Optic Cablemanufacturer 16
Direct Burial
Direct Burial Fiber Cable,direct buried cable are more solid.be able to withstand dust, pressure or rodent chewing

Product Diagram

Outdoor Fiber Cable-GYFTZA
Outdoor Fiber Cable-GYFTZA

packaging

The GYFTZS Fiber Optical Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.

包装图2
包装图2
室外光缆包装
室外光缆包装
