Exterior Fiber Optic Cable 2-288 Core by Unionfiber
Product details of the exterior fiber optic cable
Quick Detail
The production of Unionfiber exterior fiber optic cable is ensured by a complete and scientific modern production model, which is a highly efficient way to ensure the production of the product. This product is widely recommended and valued for its superior quality and long-lasting performance. Unionfiber's exterior fiber optic cable can be used in many industries. The product plays a vital role in industrial applications.
Product Description
Compared with peer products, our company's exterior fiber optic cable has the following characteristics.
Product Description

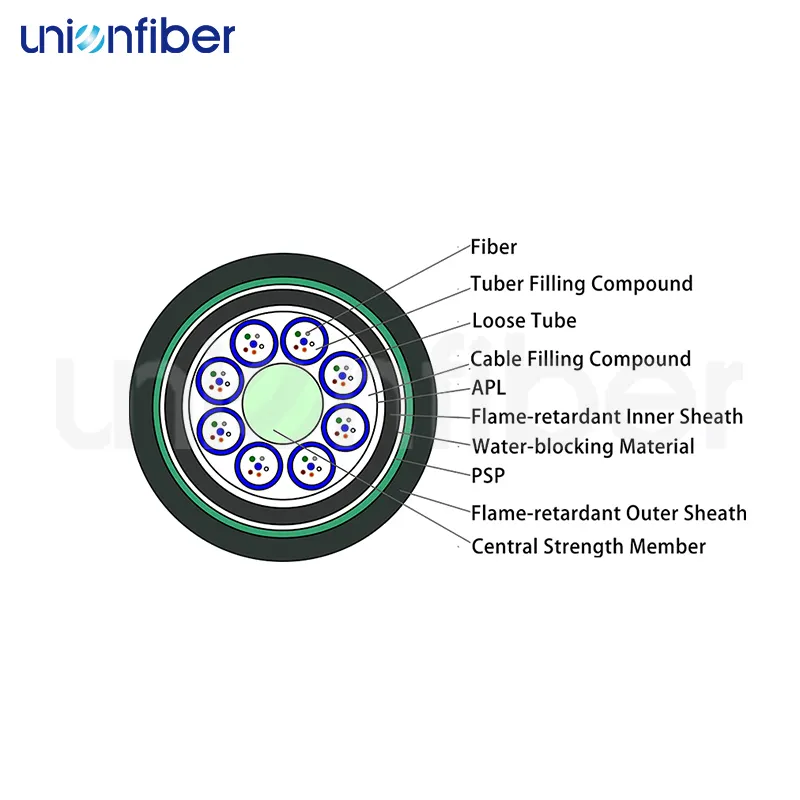

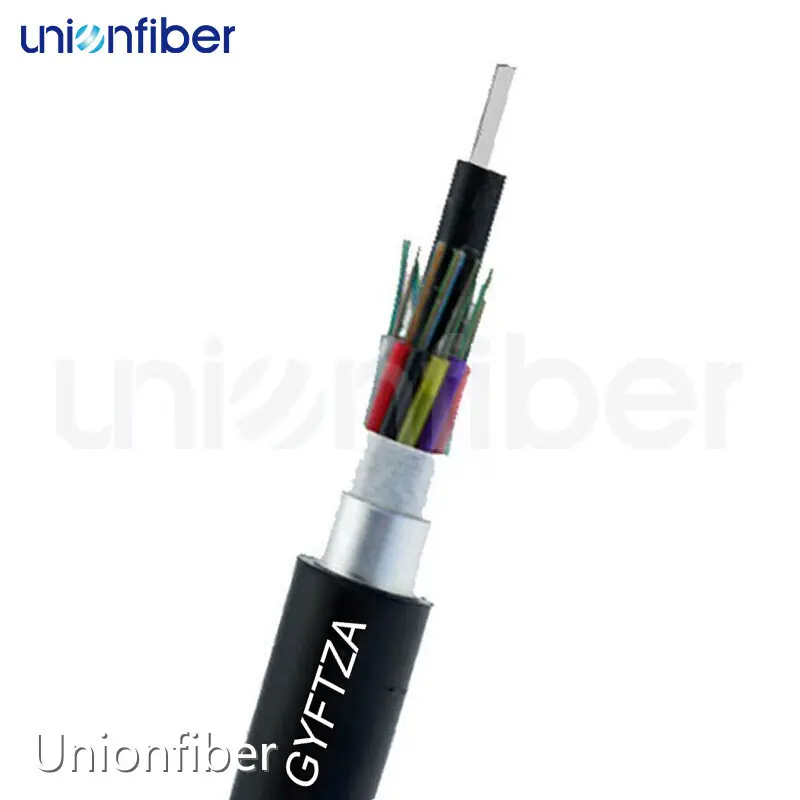

The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member(FRP) to form a cable core. The core is filled with water-blocking compound, and armored with laminated aluminum tape(APL).Then a LSZH outer jacket is extruded.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||||
|
Counts |
2-30 |
32-36 |
38-60 |
62-72 |
74-96 |
98-120 |
122-144 |
146-216 |
218-288 |
|
Max.fiber counts per tube |
6 |
6 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Units(Tubes or Fillers) |
6 |
6 |
6 |
6 |
8 |
10 |
12 |
18 |
24 |
|
Cable Diameter(mm) |
10.4 |
10.4 |
11.3 |
11.3 |
12.6 |
14.0 |
15.5 |
16.0 |
18.0 |
|
Reference weight(Kg/km) |
110 |
110 |
130 |
130 |
160 |
192 |
231 |
234 |
295 |
|
Fiber Type |
G652D G655 G657 50/125 62.5/125 |
||||||||
|
Tensile Strength(N) |
Long/Short Term:600/1500 |
||||||||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||||||
|
Bending Radius(mm) |
Static/Dynamic:12.5D/25D |
||||||||
|
Temperature(℃) |
Storage /Operation:-40℃~+70℃ |
||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

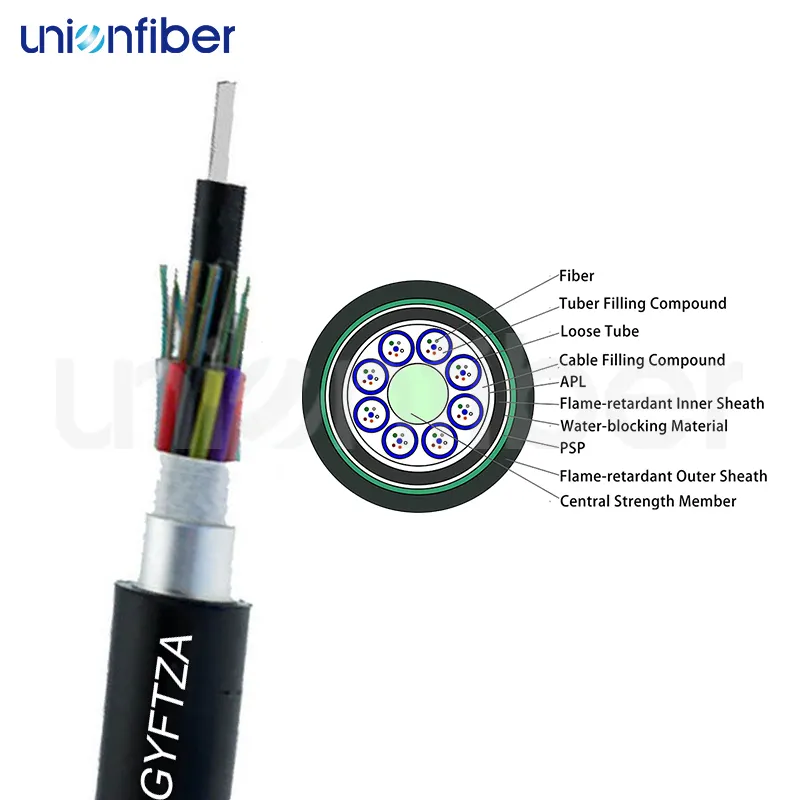

Product Diagram
packaging
The GYFTZA Fiber Optical Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
