Customoutdoor Single Mode Fiber Weunion/Unionfiber 2-288 Core
Product details of the outdoor single mode fiber
Quick Detail
Unionfiber outdoor single mode fiber is fabricated from optimum raw material supplied from top-grade vendors. This product exceeds industry standards for performance, durability and availability. This product meets the evolving application needs of customers.
Product Information
Compared with similar products, our outdoor single mode fiber's outstanding advantages are as follows.
Product Description

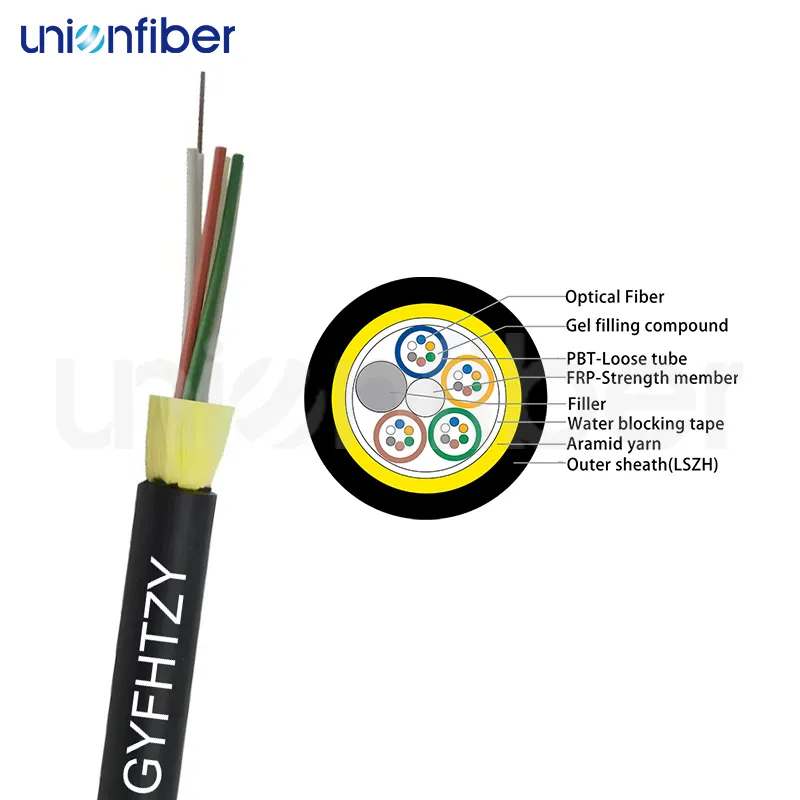

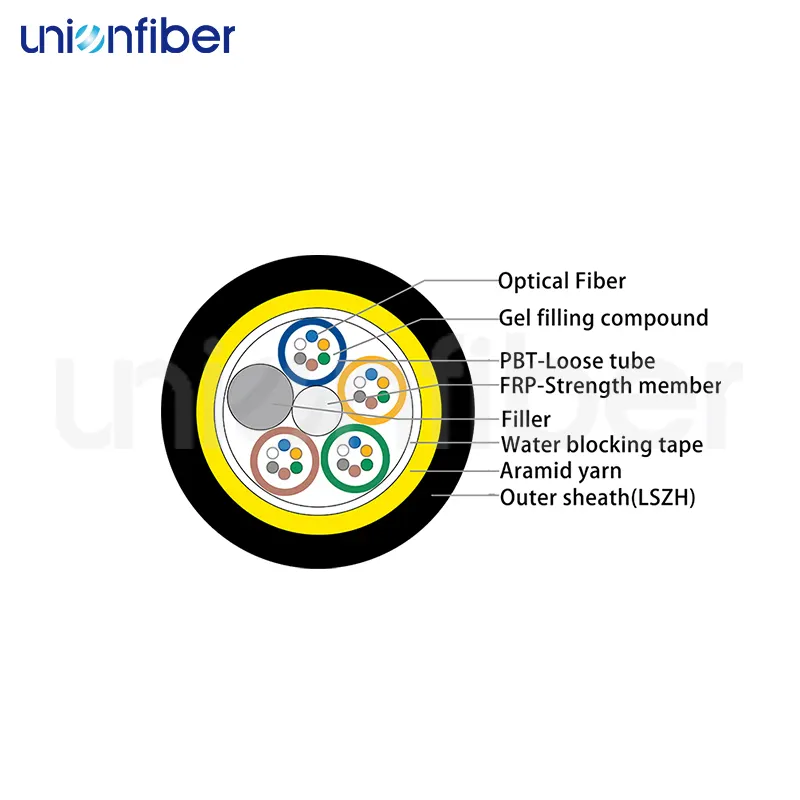

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member to form a cable core. The gap of core is filled with water-blocking yarns or longitudinally wrapped with water-blocking tape.Then a LSZH outer jacket is extruded.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||||
|
Counts |
2-30 |
32-36 |
38-60 |
62-72 |
74-96 |
98-120 |
122-144 |
146-216 |
218-288 |
|
Max.fiber counts per tube |
6 |
6 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Units(Tubes or Fillers) |
6 |
6 |
6 |
6 |
8 |
10 |
12 |
18 |
24 |
|
Cable Diameter(mm) |
10.1 |
10.1 |
11.0 |
11.0 |
12.3 |
13.7 |
15.2 |
15.6 |
17.6 |
|
Reference weight(Kg/km) |
106 |
106 |
125 |
125 |
153 |
186 |
225 |
229 |
290 |
|
Fiber Type |
G652D G655 G657 50/125 62.5/125 |
||||||||
|
Tensile Strength(N) |
Long/Short Term:600/1500 |
||||||||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||||||
|
Bending Radius(mm) |
Static/Dynamic:12.5D/25D |
||||||||
|
Temperature(℃) |
Storage /Operation:-40℃~+70℃ |
||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Diagram
packaging

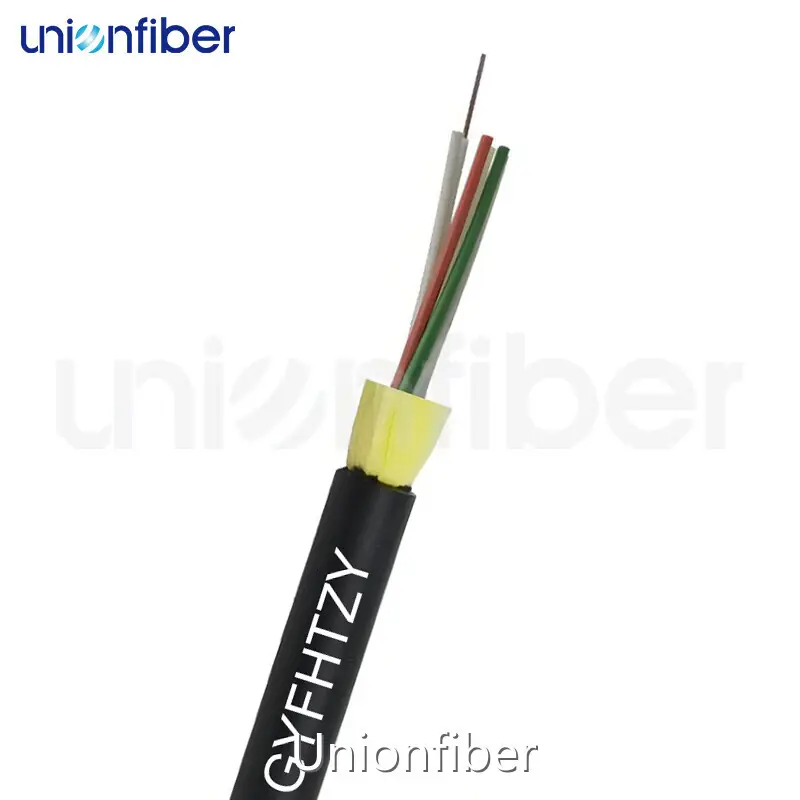

The GYFHTZY Fiber Optical Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
