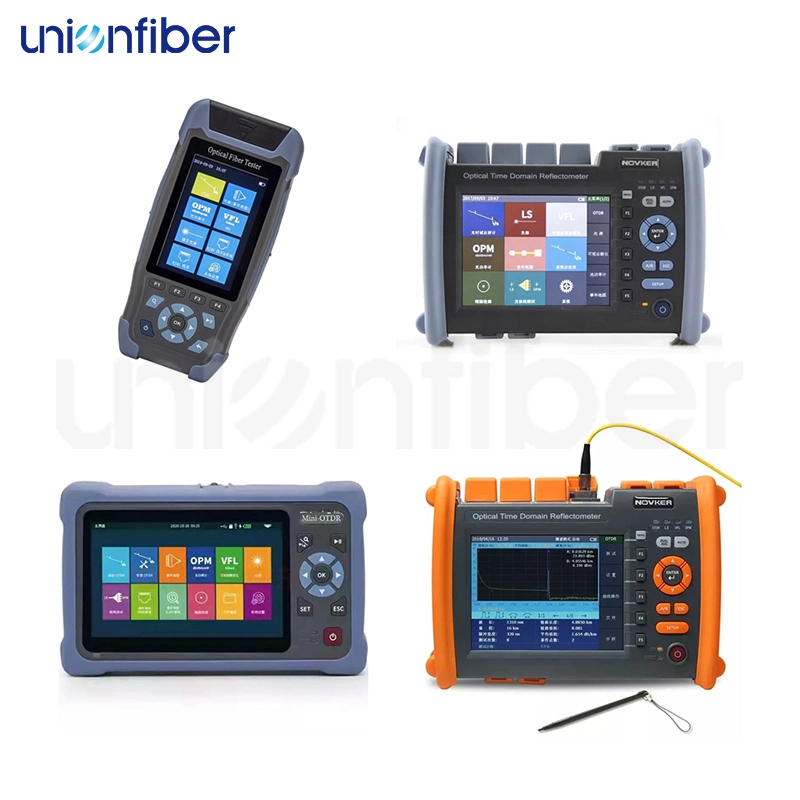

NK3200 NK4000 NK5600 NK6000 OTDR

Signal fire fusion splicer Al-10A is the world's first fourth-generation optical fiber fusion splicer, it combines electric cleaver and fusion splicer as one, with 8-in-1 signal fire stripper, and can be combined with the work bench and table, making it is the world's first real sense, small size, light weight, easy to operate optical fiber fusion splicer.

Signal fire Al-10A optical fiber fusion splicer uses a number of patents, the full weight of the

main machine, the toolbox and a complete set of accessories is only 4.5KG, and the toolbox

size is 25.5cmx16.5cm x23cm. In such a small and compact case, the combined design of bench and bench is realized at the same time. Industrial CPU, running speed is super fast, 6 seconds fast splicing, 15 seconds heating, 5 inch color HD LCD screen, 320 times magnification, 7800mAh large capacity lithium battery can splice and heat 240 cores, in high altitude, dry, cold and other harsh environments still perform well.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Signal fire fusion splicer Al-10A is the world's first fourth-generation optical fiber fusion splicer, it combines electric cleaver and fusion splicer as one, with 8-in-1 signal fire stripper, and can be combined with the work bench and table, making it is the world's first real sense, small size, light weight, easy to operate optical fiber fusion splicer.

    Signal fire Al-10A optical fiber fusion splicer uses a number of patents, the full weight of the

    main machine, the toolbox and a complete set of accessories is only 4.5KG, and the toolbox

    size is 25.5cmx16.5cm x23cm. In such a small and compact case, the combined design of bench and bench is realized at the same time. Industrial CPU, running speed is super fast, 6 seconds fast splicing, 15 seconds heating, 5 inch color HD LCD screen, 320 times magnification, 7800mAh large capacity lithium battery can splice and heat 240 cores, in high altitude, dry, cold and other harsh environments still perform well.


    Download
    NK3200 NK4000 NK5600 NK6000 OTDR 6

    Product Features

    NK3200 NK4000 NK5600 NK6000 OTDR 7
    01
    By adopting advanced image recognition technology, AI10 can automatically recognize the type of fiber and quickly achieve precise alignment of the fiber end face, greatly improving the fusion efficiency and success rate.
    NK3200 NK4000 NK5600 NK6000 OTDR 8
    02
    Equipped with a precision fusion welding system, ensuring that each fusion welding can achieve ultra-low loss, meet or even exceed industry standards, and ensure the quality of network transmission.
    NK3200 NK4000 NK5600 NK6000 OTDR 9
    03
    Equipped with a built-in high-efficiency heating furnace, it achieves rapid heat shrink tube heating, and is equipped with intelligent temperature control and overcurrent protection mechanism to ensure safe and worry free operation.
    NK3200 NK4000 NK5600 NK6000 OTDR 10
    04
    The intuitive and user-friendly touch screen interface, coupled with user-friendly operation logic, allows even first-time users to quickly get started. Support multiple language switching to meet the needs of global users.
    NK3200 NK4000 NK5600 NK6000 OTDR 11
    05
    Adopting dust-proof and waterproof design, it can adapt to various harsh construction environments. Equipped with a large capacity battery, it supports long-term outdoor work without the need for frequent charging.
    NK3200 NK4000 NK5600 NK6000 OTDR 12
    06
    Support welding record storage and data transmission, and easily perform data analysis and report generation through supporting software, providing strong support for project management.

    Product Parameters

    Product name

    NK3200 OTDR

    Model

    NK3200S1

    NK3200S2

    NK3200D

    NK3200F1(live test)

    NK3200-F2(live test)

    Wavelength

    1310nm±20nm

    1550nm±20nm

    1310/1550±20nm

    1310nm±20nm

    1550nm±20nm

    Dynamic Range

    24dB

    22dB

    24dB/22dB

    24dB

    22dB

    Display

    3.5 inches 320X480 LCD

    Data Interface

    Micro USB

    Power Supply

    AC/DC adapter:input:100V~240V,50/60Hz,0.6A
    output:5V,2A,Lithium battery:3.7V,4000mAh

    Battery Working

    Continuoustest>12h

    Operating Temperature

    -10℃+50

    Storage Temperature

    -40+70

    Relative Humidity

    0~95%Non Condensing

    Size

    173mm×82mm×37mm

    Weight

    350g

    Product name

    NK4000 OTDR

    Model

    NK4000-S

    NK4000-D

    NK4000-F1(live test)

    NK4000-F2(live test)

    NK4000-T(live test)

    Wavelength

    1550nm

    1310/1550nm

    1310nm

    1550nm

    1610nm

    Dynamic Range

    24dB

    26dB/24dB

    26dB

    24dB

    22dB

    Display

    4.3 inches 800X480 IPS TFT-LCD
    Multi touch capacitive touch screen

    Data Interface

    USB Type C

    Power Supply

    AC/DC adapter:input:100V~240V,50/60Hz,0.6A
    output:5V,2A,Lithiumbattery:3.7V,4000mAh

    Battery Working

    Continuoustest>12h

    Operating Temperature

    -10℃+50

    Storage Temperature

    -40+70

    Relative Humidity

    0~95%Non Condensing

    Size

    173mm×109mm×45mm

    Weight

    500g

    Product name

    NK5600 OTDR

    Wavelength

    1310nm±20nm/1550nm±20nm

    Dynamic Range

    32dB/30dB

    Display

    5.6 inch color LCD + touch screen

    Power supply

    AC/DC adapter:Input:100V~240V,50/60Hz,0.6A;Output:12V~19V,1.5A
    Lithium battery:7.4V,5200mAh

    Working temperature

    -10℃~+50℃

    Storage temperature

    -40℃~+70℃

    Relative humidity

    0~95%,Non Condensing

    Weight

    ≤1.2kg

    Size

    208mm×110mm×56mm

    Product name

    NK6000 OTDR

    Model

    S1

    S2

    S3

    S4

    T1

    T2

    T3

    T4

    T5

    T6

    F1

    M1

    SM1

    SM2

    Type

    SM

    MM

    SM/SM

    Wavelength

    1310/1550nm

    1310nm
    /1490nm
    /1550nm

    1310nm
    /1550nm
    /1625nm

    1310nm
    /1550nm
    /1650nm

    1310nm
    /1490nm
    /1550nm
    /1625nm

    850nm
    /1300nm

    850nm
    /1300nm
    /1310nm
    /1550nm

    Display

    5.6 inch color LCD + touch screen

    Power supply

    AC/DC adapter:Input:100V~240V,50/60Hz,0.6A;Output:12V~19V,1.5A
    Lithium battery:7.4V,5200mAh

    Working temperature

    -10℃~+50℃

    Storage temperature

    -40℃~+70℃

    Relative humidity

    0~95%,Non Condensing

    Weight

    ≤1.2kg

    Size

    227mmx160mmx70mm

    Product name

    NK3200 OTDR

    NK4000 OTDR

    NK5600 OTDR

    NK6000 OTDR

    Display

    3.5 inch Color LCD

    3.5 inch Color LCD

    5.6 inch color LCD + touch screen

    5.6 inch color LCD + touch screen

    Wavelength

    1310nm-1550nm±20nm

    1310/1550/1610nm

    1310nm±20nm/1550nm±20nm

    1310nm~1650nm

    Working temperature

    -10℃~+50℃

    Storage temperature

    -40℃~+70℃

    Relative humidity

    0~95%,Non Condensing

    Weight

    350g

    350g

    ≤1.2kg

    ≤1.2kg

    Size

    173mm×82mm×37mm

    173mm×82mm×37mm

    227mm×160mm×70mm

    227mmx160mmx70mm

    Application

    Suitable for fiber optic fusion requirements in fields such as communication, data transmission, and fiber optic networks.

    1 (131)
    2 (118)
    3 (118)
    4 (38)
    5 (24)

    Product Packaging

    The OTDR is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.

    1 (1) (2)
    1 (2) (3)
