Mini-Core Cable 1-24F Indoor Fiber Optic Cable

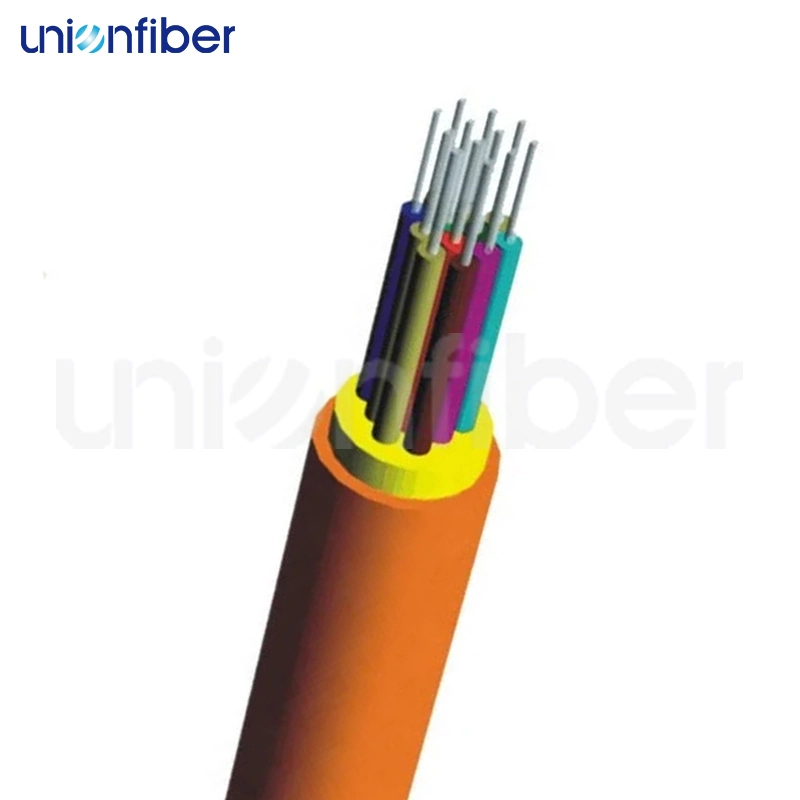

MFC cable use several Φ250um colored fiber as optical communication medium, the colored fiber wrapped with a layer of aramid yarn as strength member units. and the cable completed with PVC or LSZH material jacket.
Product Features
Product Parameters
|
Project |
Technical indicators |
||
|
Fiber Count(F) |
8 |
12 |
24 |
|
Cable Diameter(mm) |
2.4 |
3.0 |
3.5 |
|
Cable weight(Kg/km) |
3.9 |
7.0 |
8.0 |
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
||
|
Tensile Strength(N) |
Long/Short Term:60/100 |
||
|
Crush Resistance(N/100mm) |
Long/Short Term:100/500 |
||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Diagram
packaging
The Indoor Mini-Core 1~24F Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
