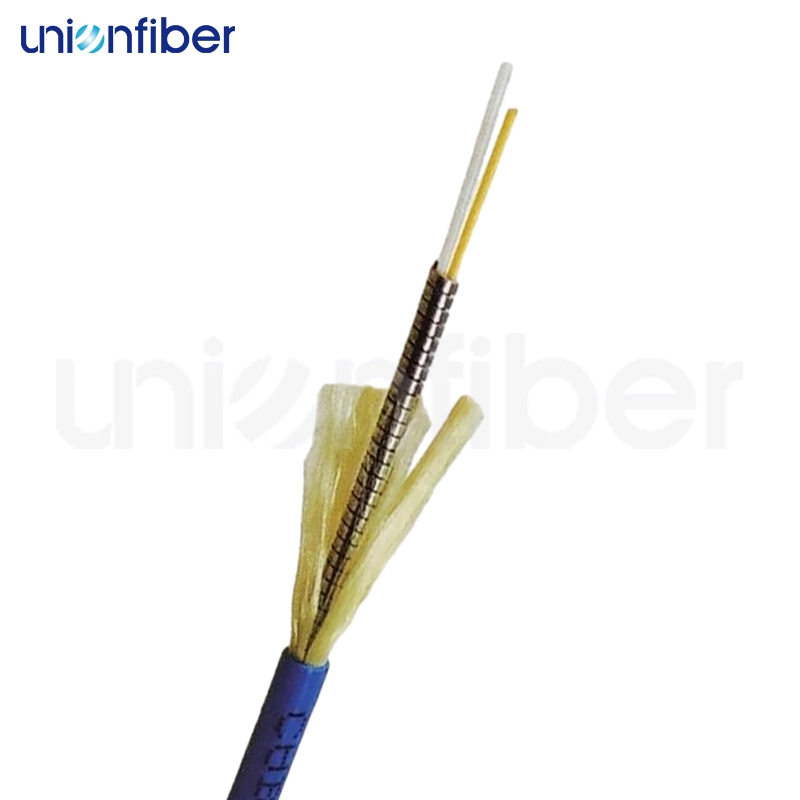

Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable

Double core circular optical fiber is made by wrapping a layer of stainless steel flat wire with a layer of aramid yarn as the strength unit, and finally making PVC or low smoke halogen-free sheathed optical cable. Armored cables have various connectors. Armored cables use flame-retardant outer sheaths for good safety.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Double core circular optical fiber is made by wrapping a layer of stainless steel flat wire with a layer of aramid yarn as the strength unit, and finally making PVC or low smoke halogen-free sheathed optical cable. Armored cables have various connectors. Armored cables use flame-retardant outer sheaths for good safety.


    Download
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 4

    Product Features

    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 5
    01
    Stainless steel wire enhances the compressive strength and rodent resistance of cables.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 6
    02
    High strength aramid yarn with high-performance outer sheath.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 7
    03
    Small bending radius, lightweight, flexible, and easy to install.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 8
    04
    Good mechanical and environmental performance.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 9
    05
    The flame-retardant outer sheath provides good safety.

    Product Parameters

    Project

    Technical indicators

    Cable Diameter(mm)

    3.0

    3.5

    4.8

    Cable weight(Kg/km)

    17

    18.5

    27

    Fiber Diameter(mm)

    0.5

    0.5

    0.9

    Armored tube Diameter(mm)

    1.8

    1.8

    2.5

    Fiber Type

    SM9/125 MM50/125 MM62.5/125 OM3 OM4

    Tensile Strength(N)

    Long/Short Term:300/600

    Crush (Max.N/100mm)

    3000

    Min.Bending radius
    (H=Cable Height)

    Long/Short Term:20xH/10xH

    Temperature(℃)

    Storage /Operation:-20℃~+60℃

    Parameter Unit 9/125 SMF-OS2 62.5/125 MMF-OM1 50/125 MF-OM2 50/125 MMF-OM3 50/125 MMF-OM4
    Attenuation dB/Km

    1310nm≤0.35

    1550nm≤0.22

    850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8
    Dispersion Ps/nm.km

    1285~1330nm≤3.5

    1550nm≤18.0

    - - - -
    Fiber Diameter um 9/125 um 50/125 um 50/125 um 50/125 um 50/125 um
    Effective Modal Bandwidth EMB - 850 nm≥200 850 nm≥200 850 nm≥200 850 nm≥200
    Zero Dispersion Wavelength Nm 1300-1324 - - - -
    Zero Dispersion Slope Ps/nm.km ≤0.095 - - - -
    Fiber Cutoff Wavelength Um ≤1260 - - - -
    Mode Field Diameter Um

    @1310nm-9.2±0.4

    @1550nm-10.4±0.8

    - - - -
    Mode Field Concentricity Um ≤0.8 - - - -
    Cladding Diameter Um 125±1.0 125±2.0 125±2.0 125±2.0 125±2.0
    Cladding Non-circularity % ≤1.0 ≤2.0 ≤2.0 ≤2.0 ≤2.0
    Coating/Cladding Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
    Concentricity Error Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
    Coating Diameter dB/Km 245±10 245±10 245±10 245±10 245±10

    Application

    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 10
    High strength aramid yarn,high performance outer sheath.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 11
    Good mechanical and environmental performance.
    Duplex Unitube Stainless Steel Flat Wire Spiral Armored Fiber Cable 12
    Flame retardant outer sheath provide good safety.

    Product Diagram

    Duplex Unitube Spiral Armored Fiber Optic Cable
    Duplex Unitube Spiral Armored Fiber Optic Cable
    Multi-fiber Spiral Armored Fiber Optic Cable
    Multi-fiber Spiral Armored Fiber Optic Cable

    packaging

    The Duplex Unitube Spiral Armored Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.

    FTTH Drop Cable+package2 (2)
    FTTH Drop Cable+package2 (2)
    FTTH Drop Cable+package (2)
    FTTH Drop Cable+package (2)
