Unionfiber Lc Connector Fiber Optic MPO-LC Fiber Optic Patchcord Lc Connector Fiber Opticfactory
Product details of the lc connector fiber optic
Product Introduction
This kind of lc connector fiber optic is produced with the latest technology. The product has stable performance, long storage life and reliable quality. The product is selling to more countries and its market share is growing steadily.
Product Description

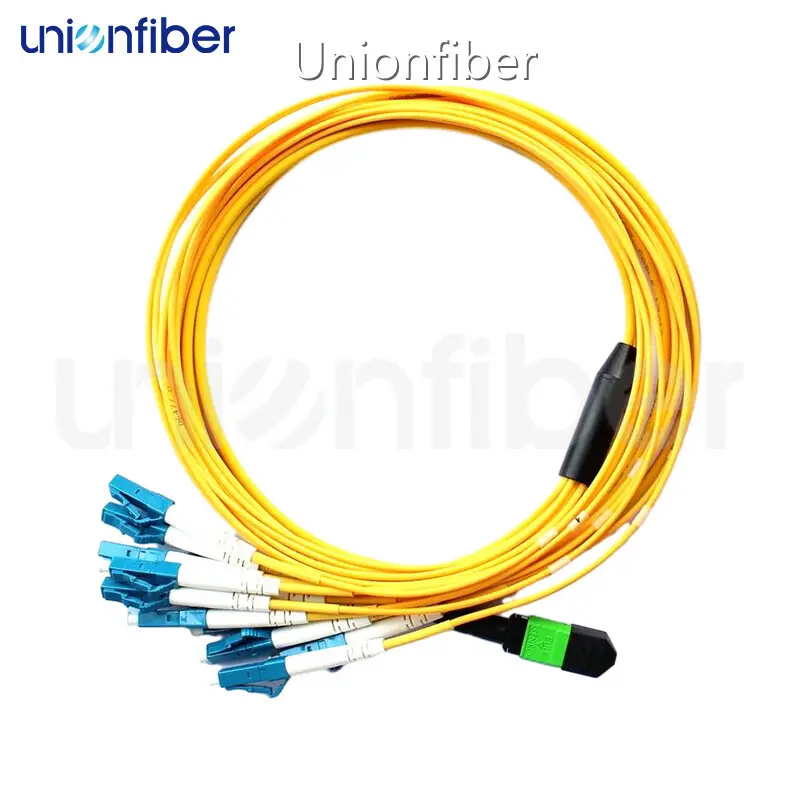

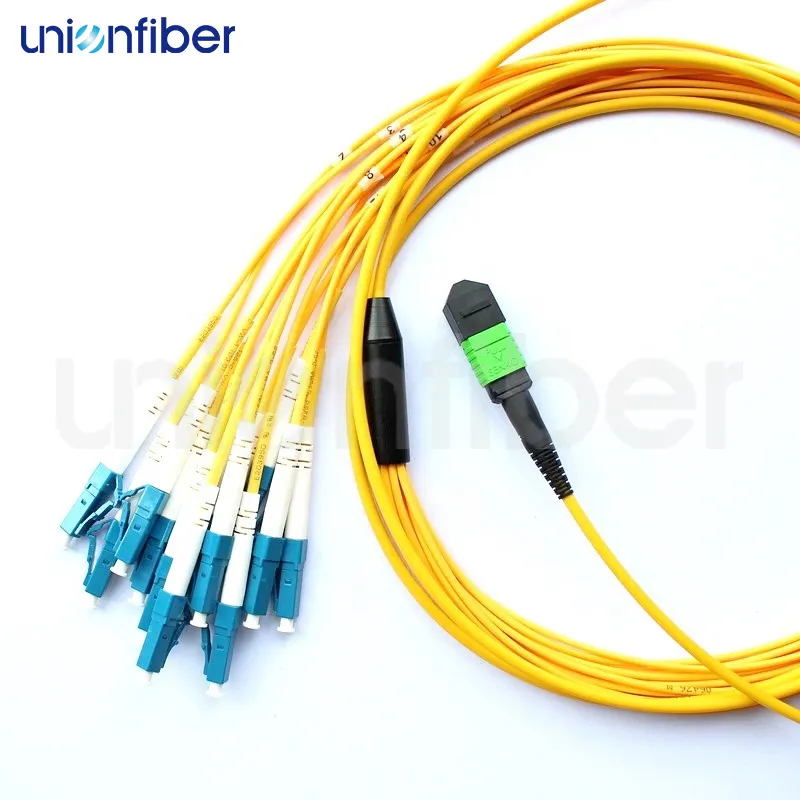

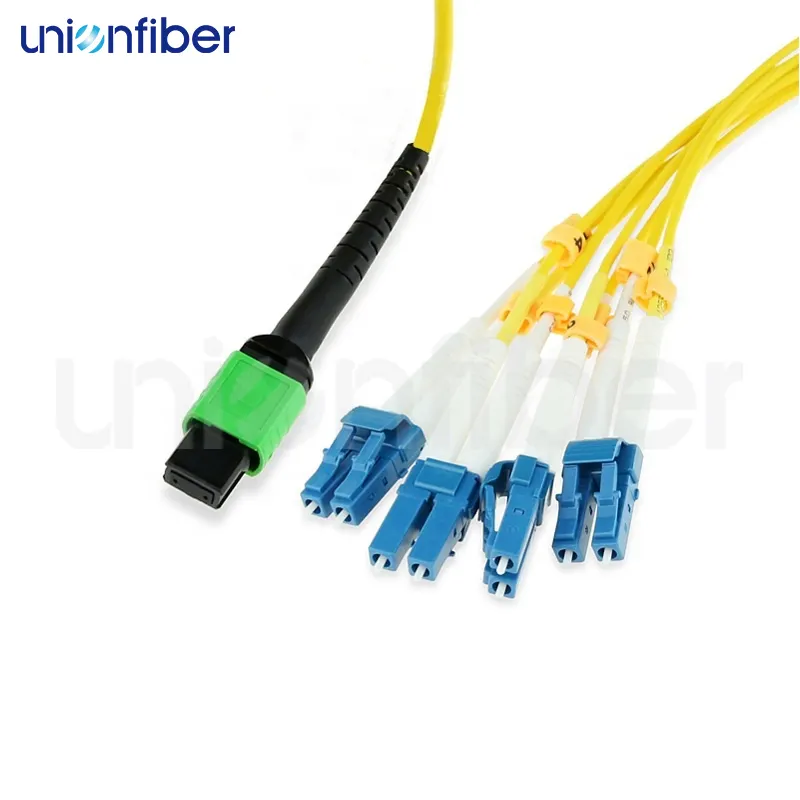

MPO-LC patchcord is a fiber optic patch cord that uses a combination of MPO (Multi fiber Push On) connectors and LC connectors. This product perfectly combines the high-density and multi-core characteristics of MPO connectors with the standard interface of LC connectors, aiming to provide efficient and reliable fiber connection solutions. MPO-LC patch cord are widely used in data centers, high-speed network devices, and environments that require high-density fiber optic connections.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||
|
Product name |
MPO-LC Fiber Optic Patchcord |
||||||
|
Parameter |
Unit |
SM Standard |
SM Low loss |
MM Standard |
MM Low loss |
||
|
Insertion Loss |
Typ |
dB |
0.35 |
0.2 |
0.35 |
0.2 |
|
|
Max |
0.75 |
0.35 |
0.65 |
0.35 |
|||
|
Reture Loss |
dB |
APC≥50 |
/ |
≥25 |
≥35 |
||
|
PC≥40 |
|||||||
|
Repeatability |
dB |
≤0.1 |
|||||
|
Interchangeability |
dB |
≤0.3(Connector Randomly) |
|||||
|
Durability |
dB |
≤0.3(change 500matings) |
≤0.3(change 1000matings) |
||||
|
Vibration |
dB |
≤0.3(10~55Hz) |
|||||
|
Fiber Type |
SM9/125,MM50/125,MM62.5/125,OM3,OM4 |
||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Packaging
The MPO-LC Fiber Optic Patchcord is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
Company Feature
• Our products meet national and international safety requirements. They are not only sold domestically but also exported to countries and regions such as br /> • Our company enjoys great geographic location with different main transportation lines crossing the city. Besides, the unimpeded road condition provides strong guarantee for the successful transportation of products.
• We keep improving after sales service mechanism and take the lead in building a professional after sales service team in the industry. Our team focuses on answering various doubts of customers and meeting their different needs.
Unionfiber's Fiber Optic Cable,Fiber Optic Cable Accessories,Fiber connectors,Fiber Box,Network Cable,Cable Test are quality, safe and practical. If you have any interests, please call us. We look forward to cooperating with you.
