Product details of the fiber optic cable supplier
Quick Overview
Premium raw materials: Unionfiber fiber optic cable supplier is made of high-quality raw materials that are only selected from qualified and certified suppliers. Meanwhile, the raw materials of this product go through rigorous screening before production. This product has the advantages of long service life and stable performance. Our fiber optic cable supplier has a wide range of applications and can be used in a variety of situations and scenarios. The product is well-known and widely accepted for its great economic benefits.
Product Introduction
The following are the fiber optic cable supplier's details presented to you by Unionfiber. And it can help you better understand the product details.
Product Features
Product Parameters
|
Project |
Technical indicators |
||
|
Fiber Count(F) |
8 |
12 |
24 |
|
Cable Diameter(mm) |
2.4 |
3.0 |
3.5 |
|
Cable weight(Kg/km) |
3.9 |
7.0 |
8.0 |
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
||
|
Tensile Strength(N) |
Long/Short Term:60/100 |
||
|
Crush Resistance(N/100mm) |
Long/Short Term:100/500 |
||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

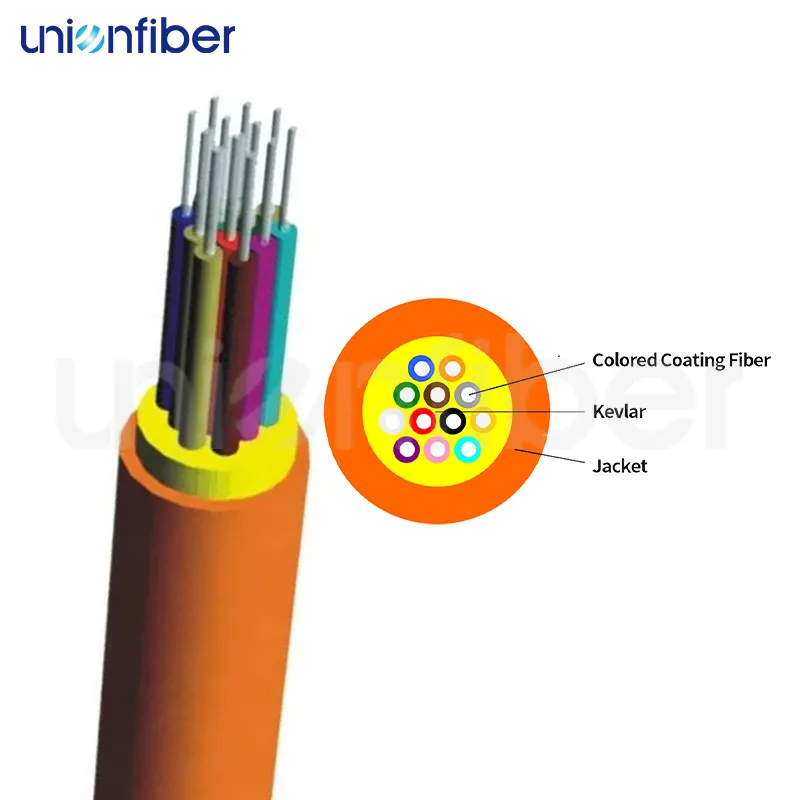

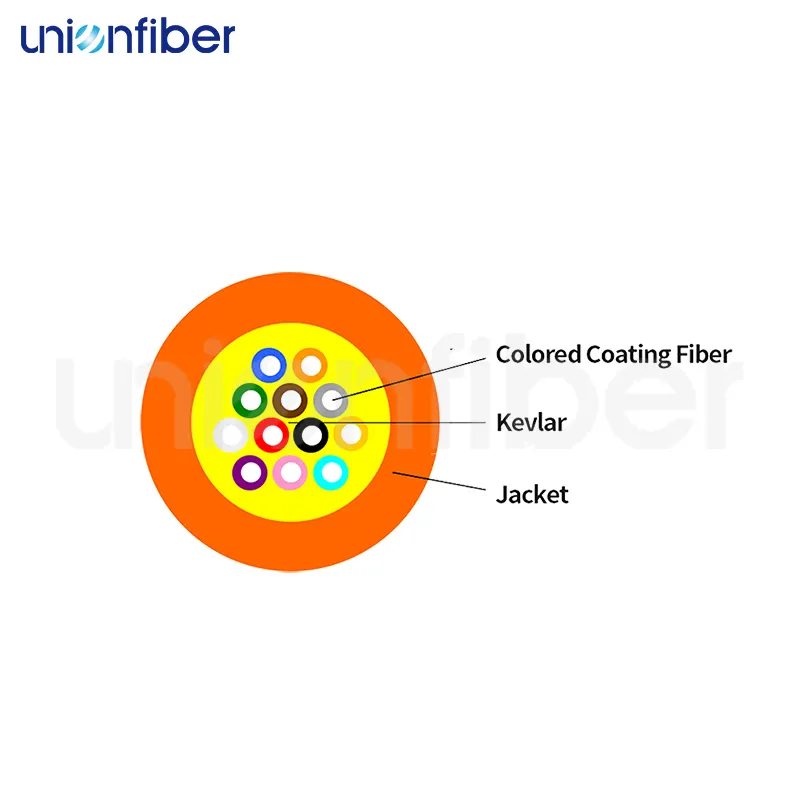

Product Diagram
packaging
The Indoor Mini-Core 1~24F Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
