Unionfiber Fiber Connectors SC/APC Fiber Connectorsvendor
Product details of the fiber connectors
Product Overview
The technology used to manufacture Unionfiber fiber connectors is innovative and advanced, ensuring standardization production. In line with international quality standards, the quality of this product is more reliable. Our fiber connectors is widely used. This product fills demand gaps in the industry.
Product Introduction
We are confident about the exquisite details of fiber connectors.
Product Description

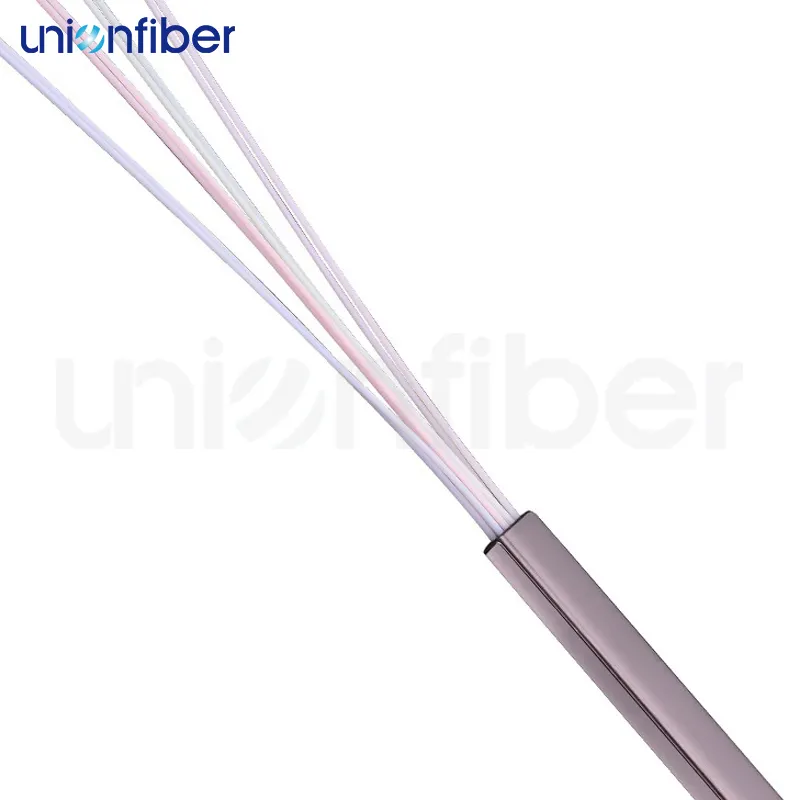

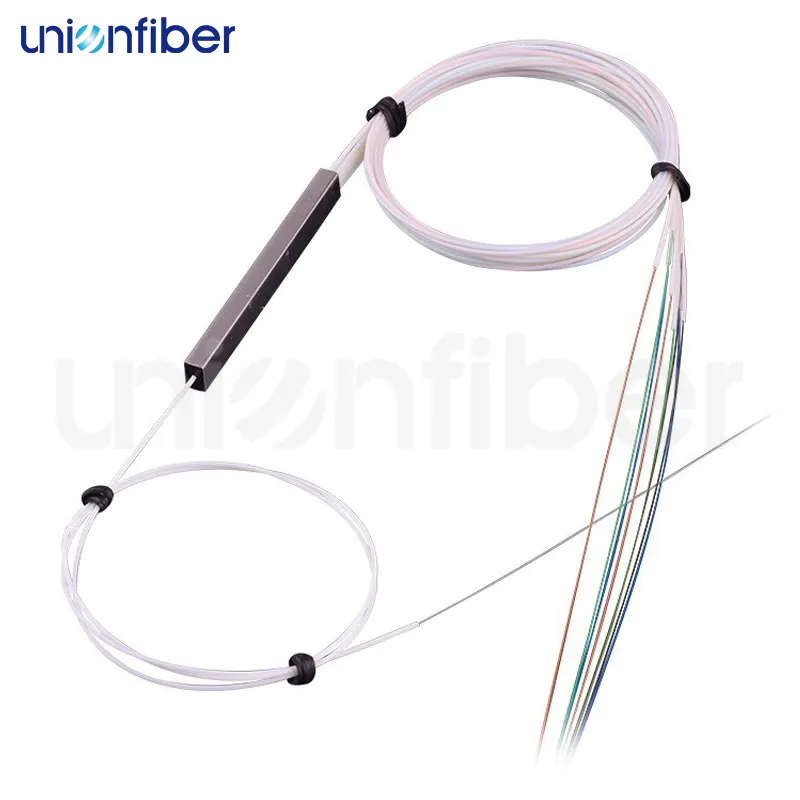

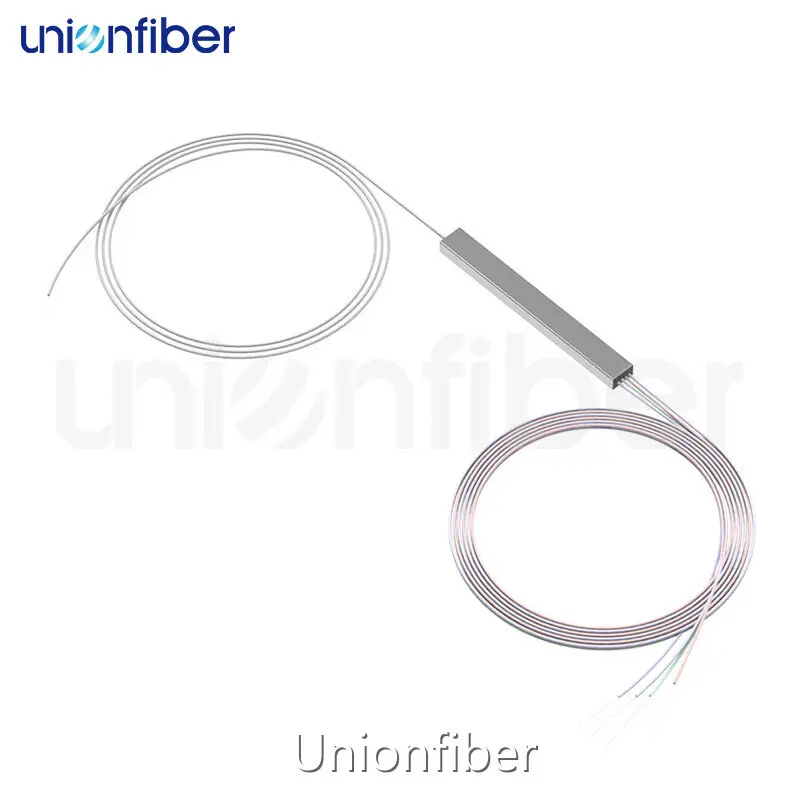

The Bare Fiber PLC Fiber Optic Splitter, combined with the pure transmission characteristics of bare fiber, can effectively reduce signal attenuation and distortion, ensure communication quality, and provide users with stable and efficient fiber signal distribution and transmission solutions. At the same time, the product adopts a modular design, making installation simple and fast. Meanwhile, its unique maintenance interface and tools greatly simplify the difficulty and cost of later maintenance.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||||||
|
Product name |
Bare-Fiber PLC Fiber Optic Splitter |
||||||||||
|
Parameter |
Unit |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
||||
|
Fiber Type |
/ |
G.657A,or customized |
|||||||||
|
Operating Wavelength |
nm |
1260~1650 |
|||||||||
|
Insertion Loss |
P |
Max |
dB |
4.0 |
7.0 |
10.4 |
13.5 |
16.8 |
20.5 |
||
|
S |
Max |
dB |
4.2 |
7.3 |
10.6 |
13.8 |
17.1 |
20.8 |
|||
|
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|||
|
Loss Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|||
|
Return Loss |
Max |
dB |
55(P Grade)/50(S Grade) |
||||||||
|
Directivity |
Max |
dB |
55 |
||||||||
|
Operating Temperature |
℃ |
-40~+85 |
|||||||||
|
Storage Temperature |
℃ |
-40~+85 |
|||||||||
|
Dimension(L x W x H) |
mm |
40x4x4 |
50x7x4 |
60x12x4 |
|||||||
|
Remark: The above parameters do not include connectors; If connectors are added,the insertion loss will increase 0.2dB each. |
|||||||||||
|
Parameter |
Unit |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
||||
|
Fiber Type |
/ |
G.657A,or customized |
|||||||||
|
Operating Wavelength |
nm |
1260~1650 |
|||||||||
|
Insertion Loss |
P |
Max |
dB |
4.0 |
7.3 |
10.6 |
13.9 |
17.2 |
20.8 |
||
|
S |
Max |
dB |
4.2 |
7.5 |
11.0 |
14.5 |
17.5 |
21.0 |
|||
|
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|||
|
Loss Uniformity |
Max |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|||
|
Return Loss |
Max |
dB |
55(P Grade)/50(S Grade) |
||||||||
|
Directivity |
Max |
dB |
55 |
||||||||
|
Operating Temperature |
℃ |
-40~+85 |
|||||||||
|
Storage Temperature |
℃ |
-40~+85 |
|||||||||
|
Dimension(L x W x H) |
mm |
40x4x4 |
50x7x4 |
60x12x4 |
|||||||
|
Remark: The above parameters do not include connectors; If connectors are added,the insertion loss will increase 0.2dB each. |
|||||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
FTTX networks,PON networks;LAN networks,CATV systems.
Product Packaging
The Bare-Fiber PLC Fiber Optic Splitter is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
