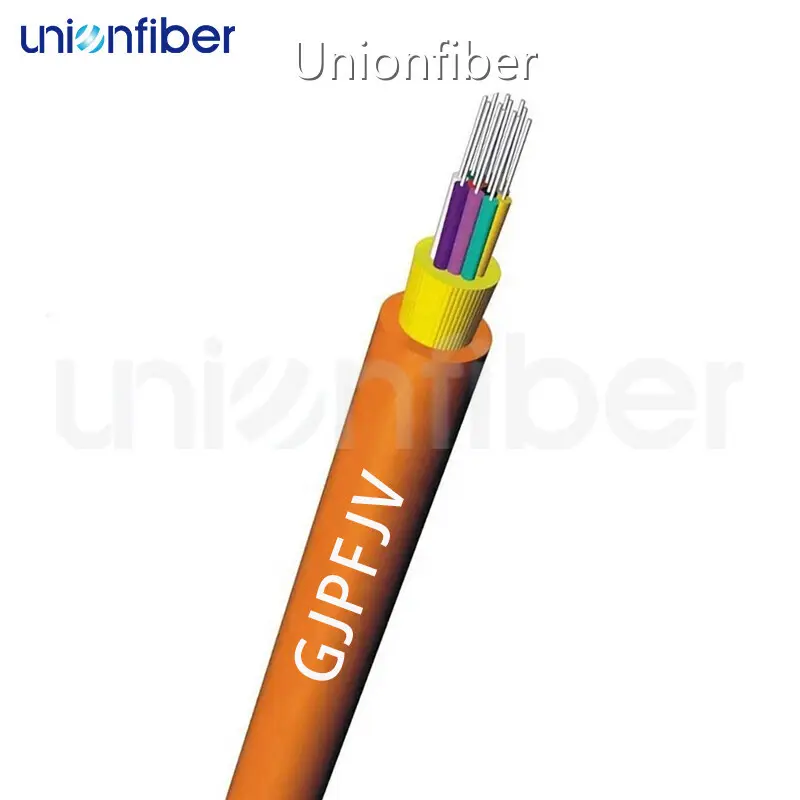

Indoor Tight-Buffered Distribution 12Core Multimode GJPFJV Fiber Optic Cable-1
Product details of the indoor outdoor fiber cable
Product Introduction
Product Description
The duplex flat optical cable uses two 900μm or 600μm tight buffered fibres as optical transmission medium, covered with aramid yarns as the strength member. A PVC inner sheath is extruded on each fibres, then a flat PVC outer sheath is extruded. Other sheath materials are available on request.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||
|
Cable Diameter(mm) |
3.8*2.4 |
4.6*2.8 |
5.0*3.0 |
5.8*3.4 |
7.0*4.0 |
|
Fiber Diameter(mm) |
0.6 or 0.9 |
||||
|
Cable weight(Kg/km) |
9.8 |
12 |
14.8 |
19.4 |
25.6 |
|
Tolerance Range(mm) |
±0.1,or customized |
||||
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
||||
|
Tensile Strength(N) |
Long/Short Term:100/200 |
||||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
||||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Diagram
packaging
The Indoor GJPFJV Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
