High Quality Lc Fiber Pigtail Supplier
Company Advantages
· The application of innovative technology gives Unionfiber lc fiber pigtail an innovative design.
· Statistical quality control technique has been adopted during the production to guarantee the consistent quality of the product.
· Zhengzhou Union Communication Technology Co., Ltd. is capable of arranging accurate production time table with competitive price.
Product Description

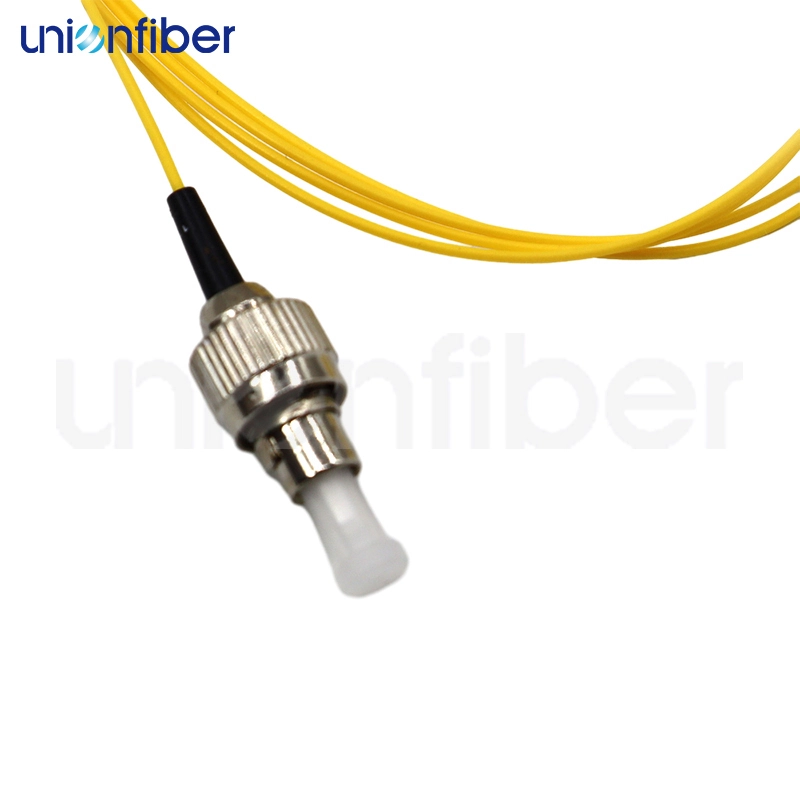

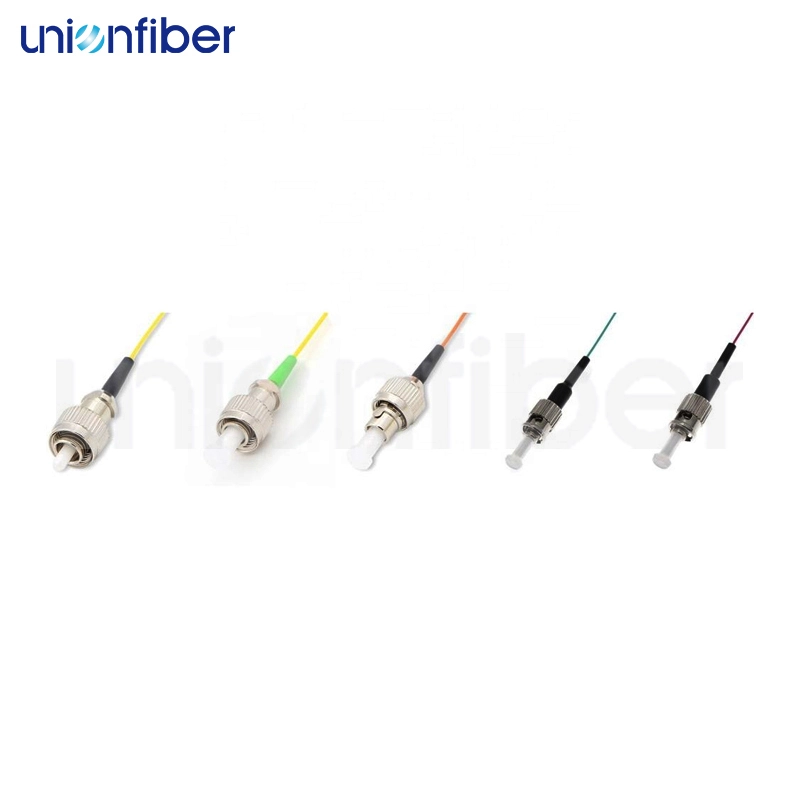

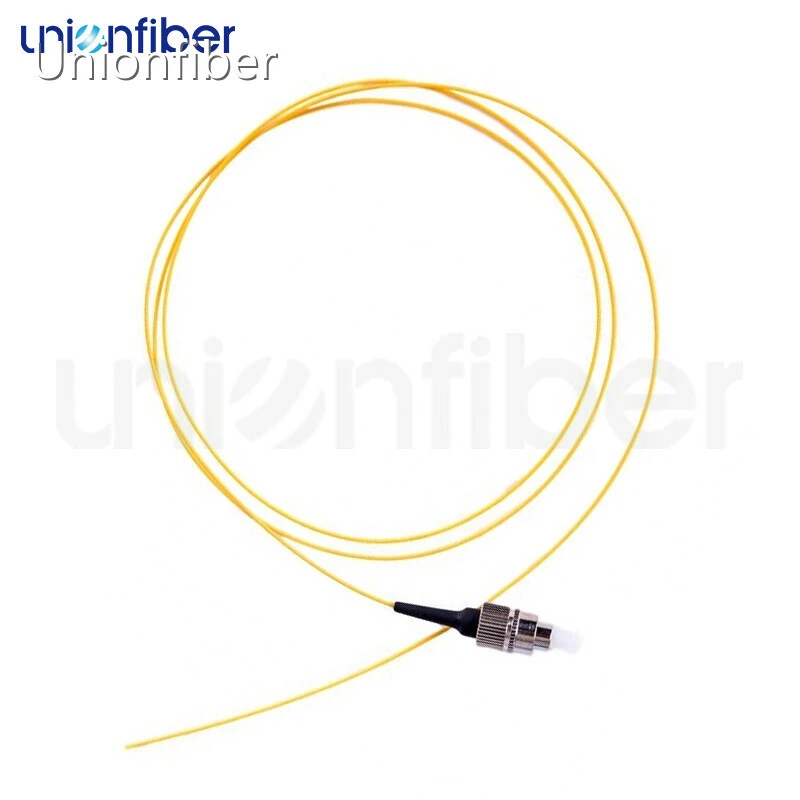

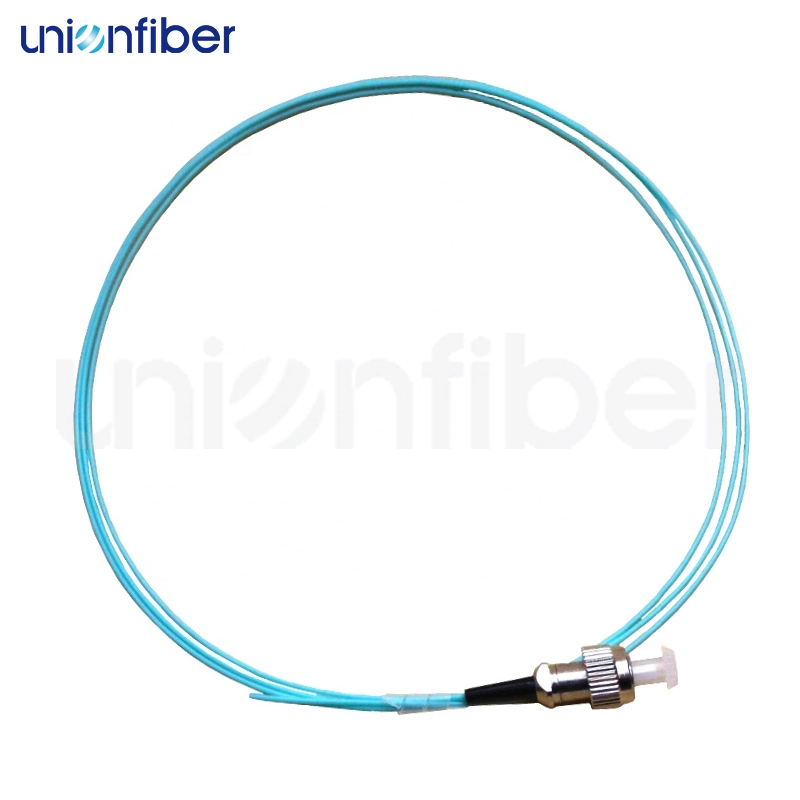

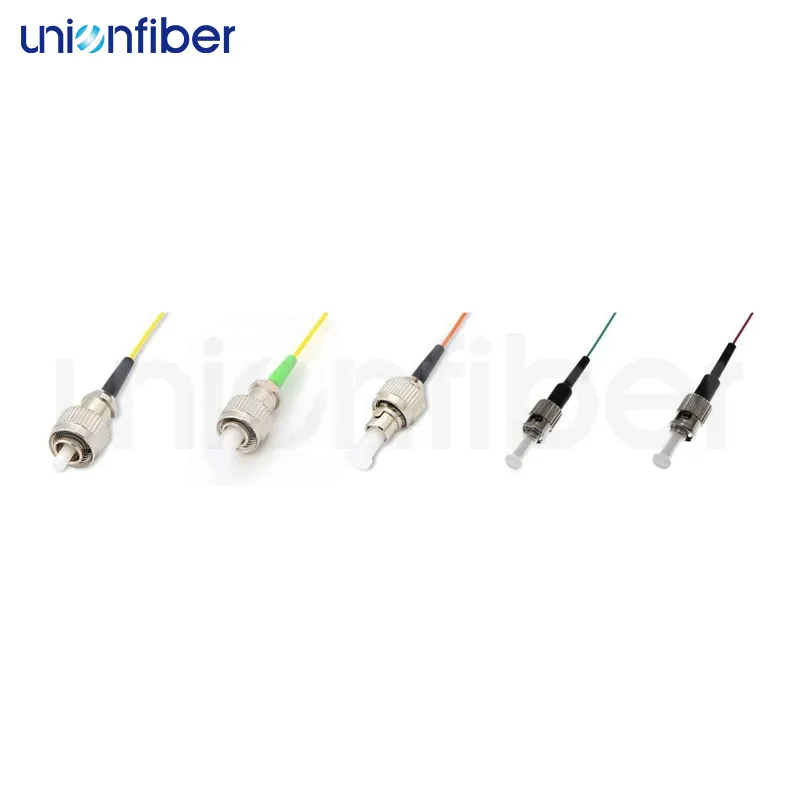

The fiber optic pigtail of FC connectors is a high-quality fiber optic connection product designed specifically for efficient and stable connections in fiber optic communication systems. Its unique FC connector interface ensures precise docking between optical fibers, thereby reducing insertion loss and improving signal transmission quality.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||
|
Product name |
FC Fiber Optic Pigtail |
||||
|
Parameter |
Unit |
Index |
|||
|
Connector Type |
/ |
PC(SM) |
UPC(SM) |
APC(SM) |
PC(MM) |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥35 |
|
Insertion Loss |
dB |
Typ≤0.2 Max≤0.3 |
|||
|
Repeatability |
dB |
≤0.1 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Connection Durability |
times |
≥500(non-metalic) ≥1000(metal) |
|||
|
Operating Temperature |
℃ |
-25 ~+70 |
|||
|
Fiber Type |
SM9/125,MM50/125,MM62.5/125,OM3,OM4 |
||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Long haul trunk,metro and access system;CATV and fiber network system.
Product Packaging
The FC Fiber Optic Pigtail is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
Company Features
· The advanced technology and high quality lc fiber pigtail make Zhengzhou Union Communication Technology Co., Ltd. a promising enterprise in the industry.
· Strong R&D and unique patented technology of Zhengzhou Union Communication Technology Co., Ltd. win itself many customers. Unionfiber's factory has the independent research and development capability.
· We operate ethically and lead with integrity, earning the trust of our employees, customers, suppliers, investors, and the communities where we live and work.
Product Details
We pursue perfection in every detail of the lc fiber pigtail we produce. And our products represent the excellent quality.
