High Quality Indoor Fiber Cable
Product details of the indoor fiber cable
Product Introduction
The offered Unionfiber indoor fiber cable is designed under the guidance of highly skilled designers. Before delivery, the product has to be inspected strictly to ensure that it is of high quality in every aspect as such as performance, usability, and so on. This product has a wide range of applications on the market.
Product Description

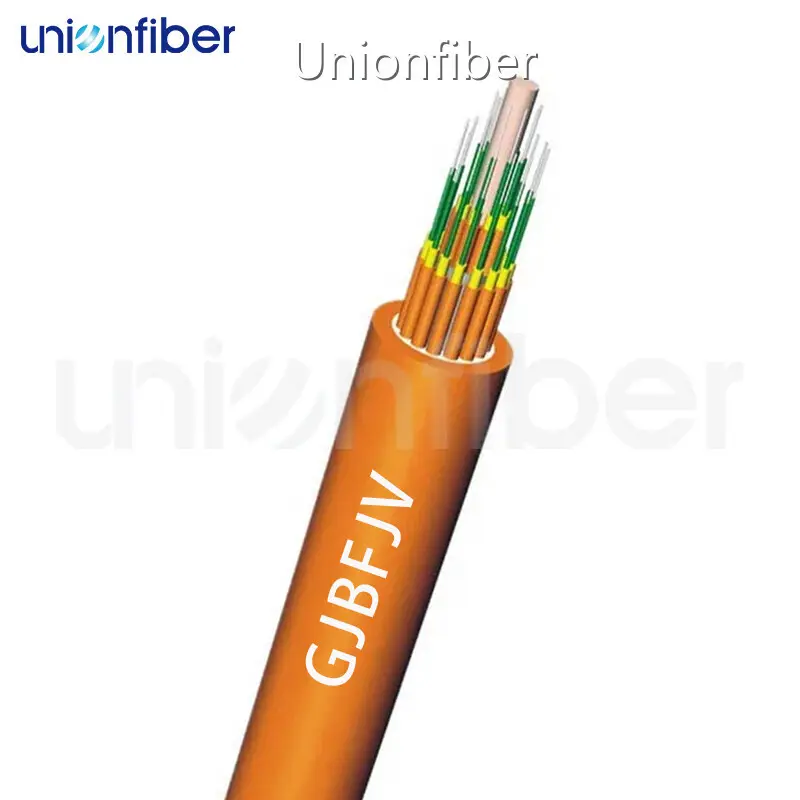

Multi-Purpose Break-out Cable use simplex cable (Φ900μm tight buffer fiber, and aramid yarn as strength member units) as submit, a fiber reinforced plastic(FRP) locates in the center of core as a non- metallic strength member. The subunits are stranded around the cable core, and the cable completed with PVC or LSZH material jacket.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||||
|
Fiber Count(F) |
4 |
6 |
8 |
12 |
24 |
36 |
48 |
||
|
Cable Diameter(mm) |
7.5 |
8.5 |
10.0 |
12.5 |
15.5 |
17.5 |
20.0 |
||
|
Cable weight(Kg/km) |
45 |
50 |
91 |
145 |
178 |
200 |
247 |
||
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
||||||||
|
Tensile Strength(N) |
Long/Short Term |
||||||||
|
200/400 |
250/600 |
300/800 |
400/1000 |
800/2200 |
1000/3000 |
1000/3000 |
|||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||||||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
||||||||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

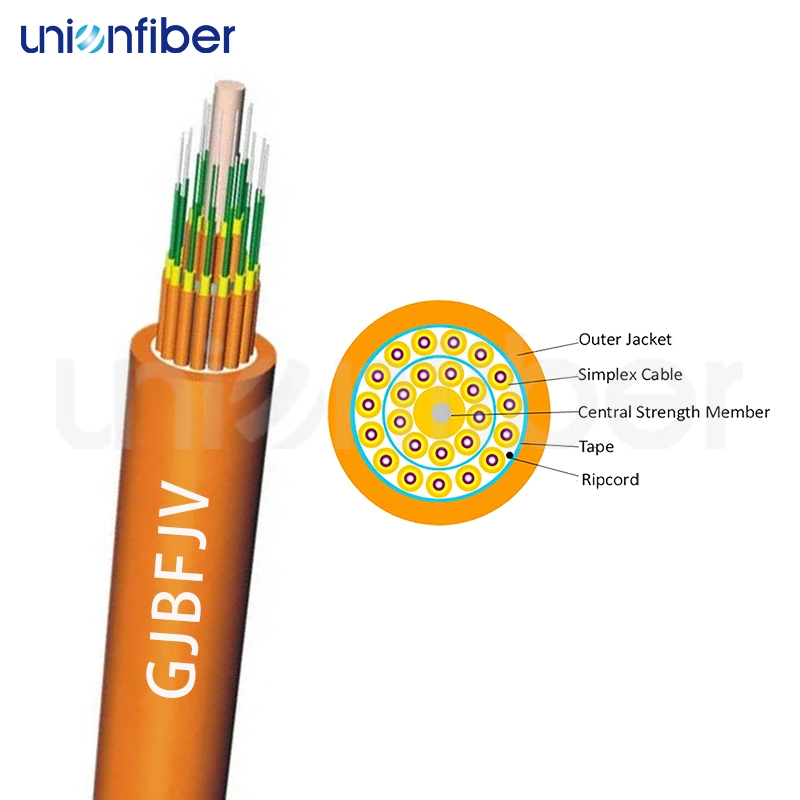

Product Diagram
packaging
The Indoor GJBFJV Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
Company Advantage
• Unionfiber's comprehensive service system covers from pre-sales to in-sales and after-sales. It guarantees that we can solve consumers' problems in time and protect their legal right.
• We have gained outstanding achievements. Our products are sold well in many cities and regions across the country.
• Unionfiber enjoys a superior location with traffic convenience, which creates advantages for outward sales.
• Established in Unionfiber has gained rich experience through years of development.
• Unionfiber has experienced R&D, production and testing teams, which can meet the requirements of customers.
If you have any questions or valuable suggestions, please feel free to contact Unionfiber!
