Fiber Optic Wire Cable 48-144 Core by Unionfiber
Product details of the fiber optic wire cable
Product Overview
Zhengzhou Union Communication Technology Co., Ltd. provides different designs of fiber optic wire cable for your choice. Strict quality inspection ensures the quality of products. Thanks to its good characteristics, the product has found a wide application in the global market.
Product Description
fiber optic wire cable's outstanding advantages are as follows.
Product Description

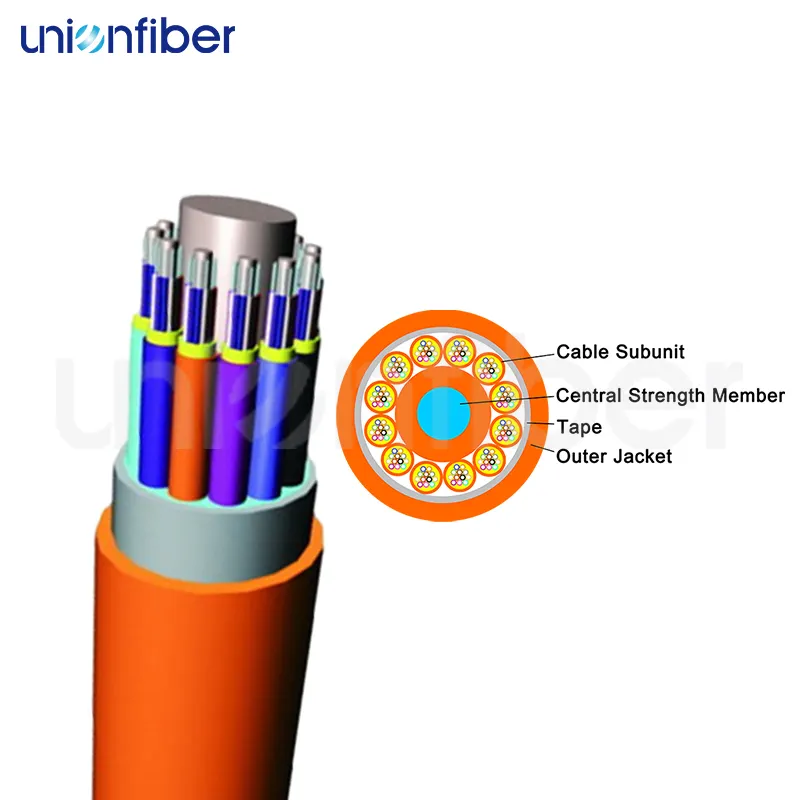

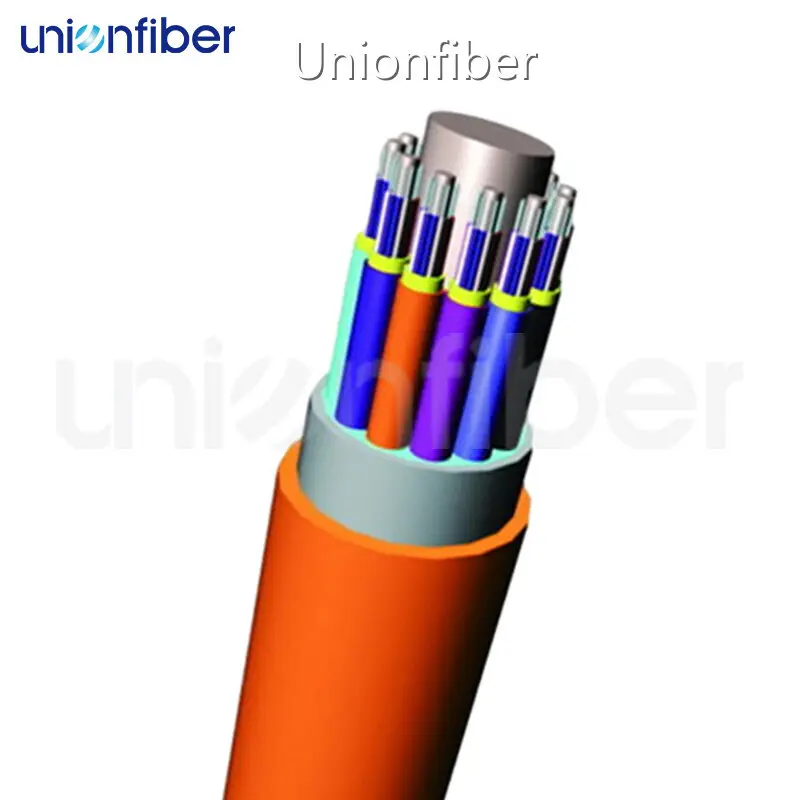

MFC cable use 12-fibre subunits( Φ250um colored fiber, aramid yarn as strength member) A fiber reinforced plastic(FRP)locates in the center of core as non-metallic strength member, The subunits as stranded around the cable core. and the cable completed with PVC or LSZH material jacket.
Product Features
Product Parameters
|
Project |
Technical indicators |
|||
|
Fiber Count(F) |
48 |
72 |
96 |
144 |
|
Cable Diameter(mm) |
10.5 |
12.5 |
14.5 |
17.5 |
|
Cable weight(Kg/km) |
90 |
145 |
200 |
315 |
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
|||
|
Tensile Strength(N) |
Long/Short Term:200/400 |
|||
|
Crush Resistance(N/100mm) |
Long/Short Term:200/1000 |
|||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
|||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
|||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

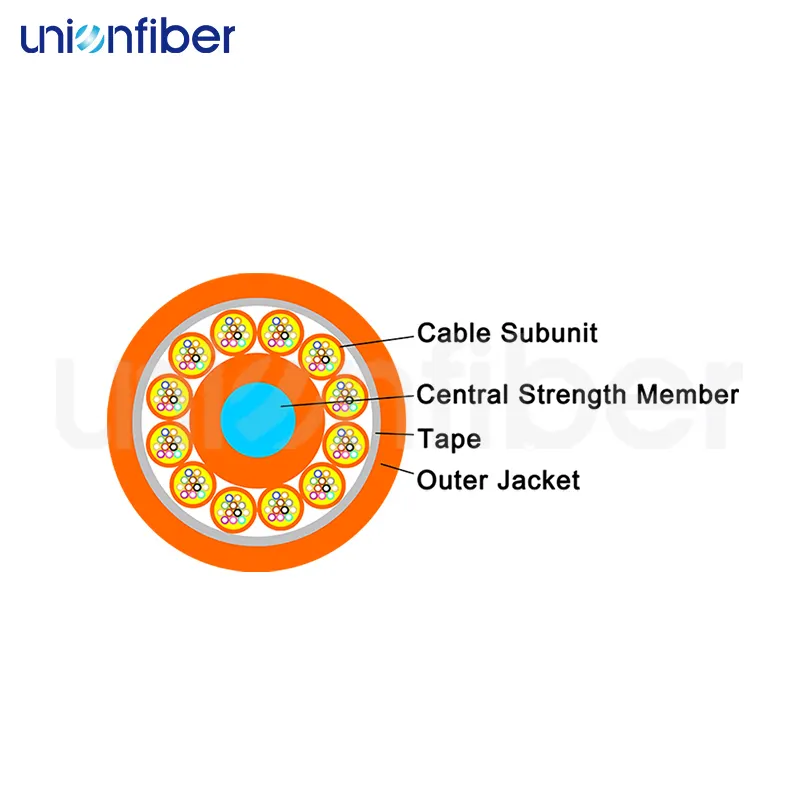

Product Diagram
packaging
The Indoor Mini-Core 48-144F Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
