Custom Optical Wire Cable Optical Wire Cable Company
Product details of the optical wire cable
Quick Detail
Unionfiber optical wire cable is the result of many years of development and refinement of production methods and technology. The product has reached the domestic advanced level and contributed to the international trade. Unionfiber's optical wire cable can play an important role in various fields. Zhengzhou Union Communication Technology Co., Ltd.'s highly experienced R&D team is capable of doing unique projects on optical wire cable.
Product Description
The optical wire cable produced by Unionfiber has better quality, as shown below.
Product Description

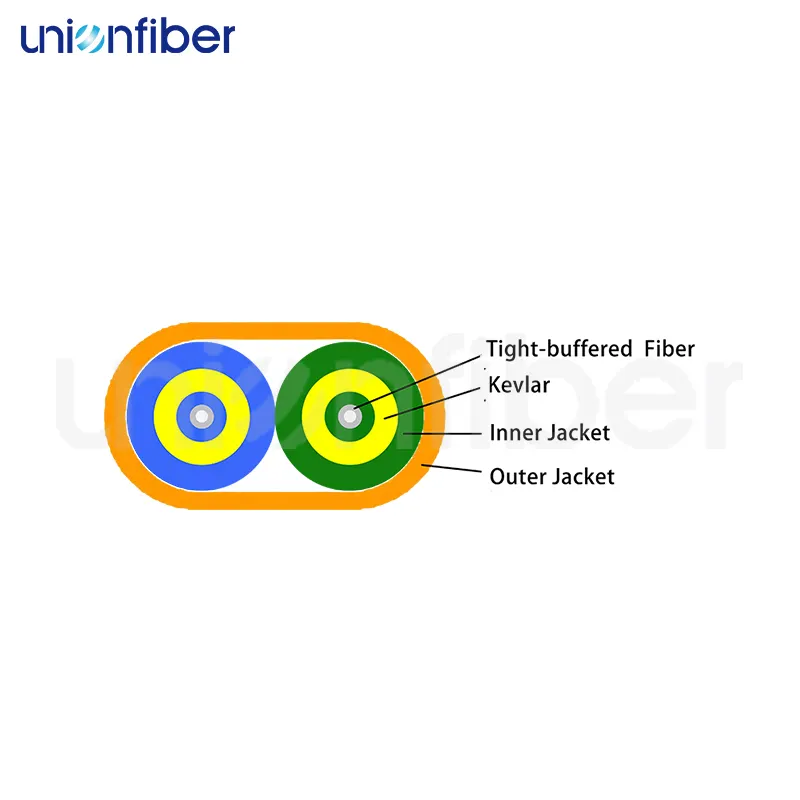

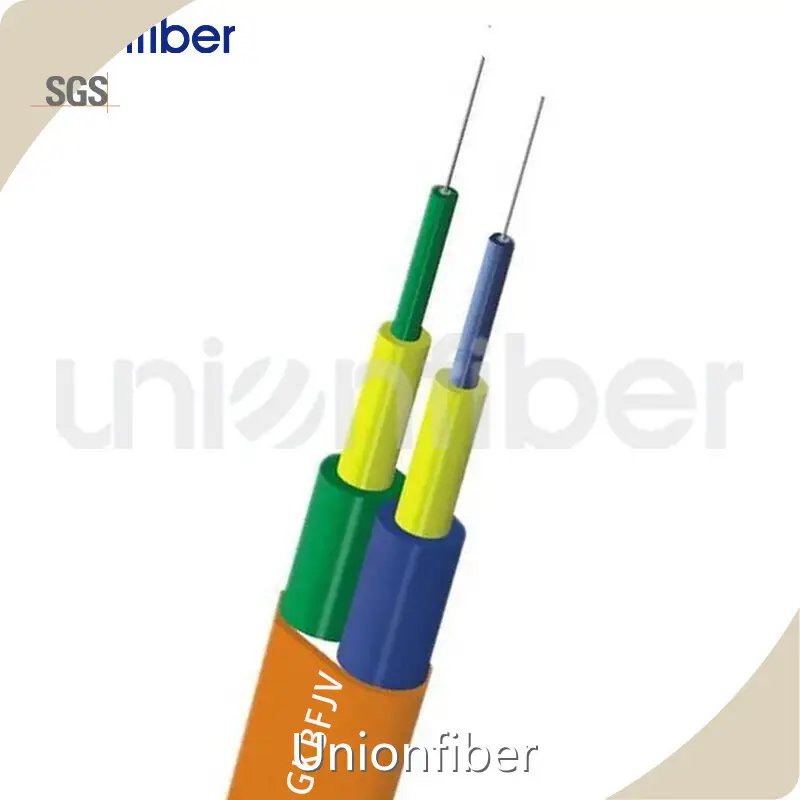

The duplex flat optical cable uses two 900μm or 600μm tight buffered fibres as optical transmission medium, covered with aramid yarns as the strength member. A PVC inner sheath is extruded on each fibres, then a flat PVC outer sheath is extruded. Other sheath materials are available on request.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||
|
Cable Diameter(mm) |
3.8*2.4 |
4.6*2.8 |
5.0*3.0 |
5.8*3.4 |
7.0*4.0 |
|
Fiber Diameter(mm) |
0.6 or 0.9 |
||||
|
Cable weight(Kg/km) |
9.8 |
12 |
14.8 |
19.4 |
25.6 |
|
Tolerance Range(mm) |
±0.1,or customized |
||||
|
Fiber Type |
SM9/125 MM50/125 MM62.5/125 OM3 OM4 |
||||
|
Tensile Strength(N) |
Long/Short Term:100/200 |
||||
|
Crush Resistance(N/100mm) |
Long/Short Term:300/1000 |
||||
|
Bending Radius(mm) |
Static/Dynamic:10D/20D |
||||
|
Temperature(℃) |
Storage /Operation:-20℃~+60℃ |
||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application

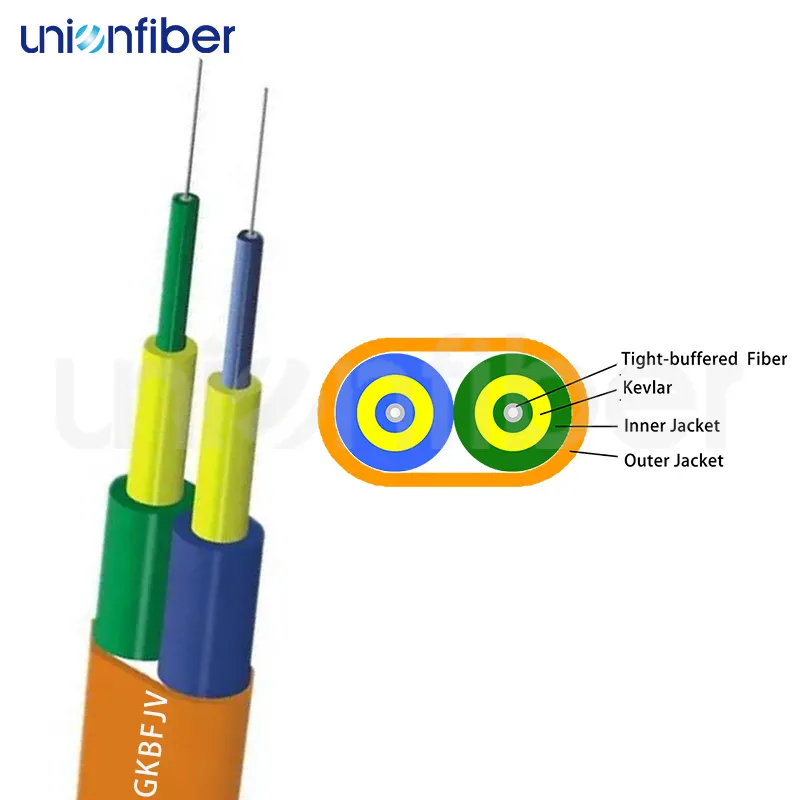

Product Diagram
packaging
The Indoor GKBFJV Fiber Optic Cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
Company Advantages
Zhengzhou Union Communication Technology Co., Ltd. is a company that mainly manages the business of Fiber Optic Cable,Fiber Optic Cable Accessories,Fiber connectors,Fiber Box,Network Cable,Cable Test. Our company takes the technology as driving force, and insists on the corporate culture of 'harmony, integrity, pragmatism, struggle, and innovation'. We improve work efficiency by management, and provide customers with assured products. Unionfiber has a high-quality production team and professional inspection personnel to ensure excellent quality of products. Unionfiber is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
The products we produced are of high quality and reasonable price. If needed, please contact us!
