Product Description

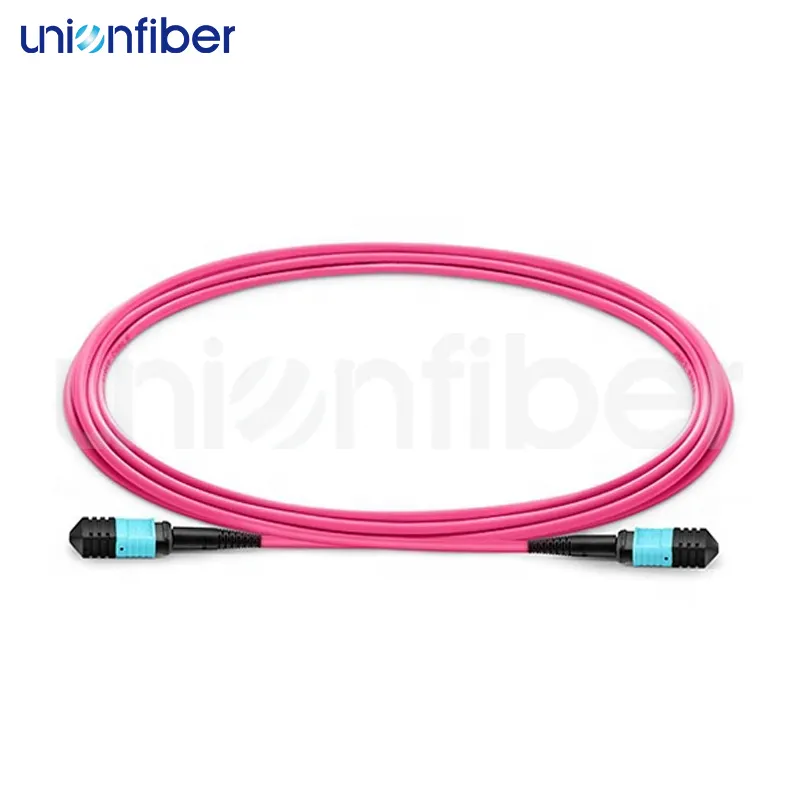

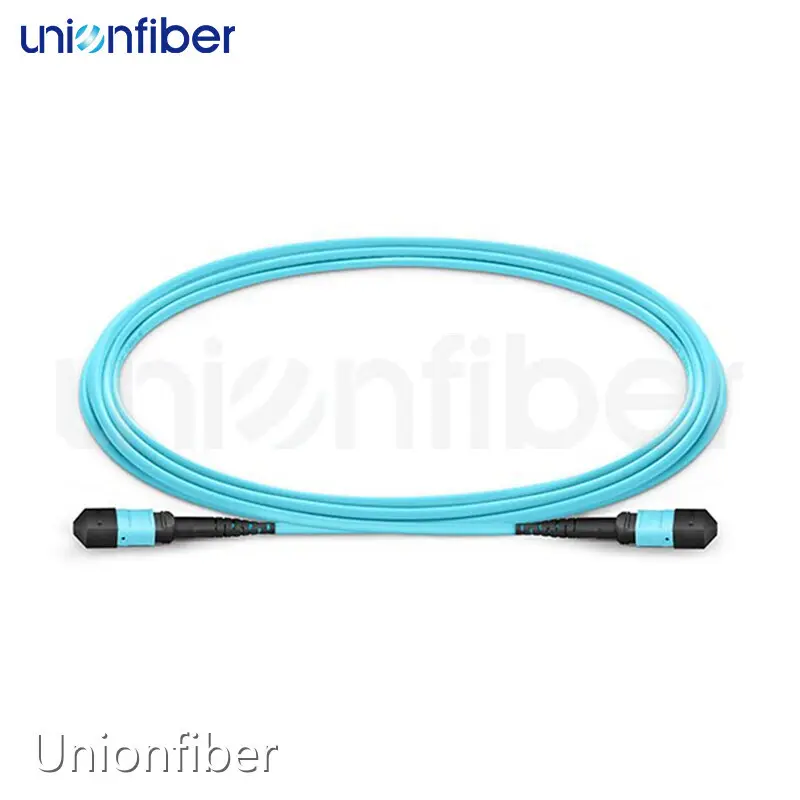

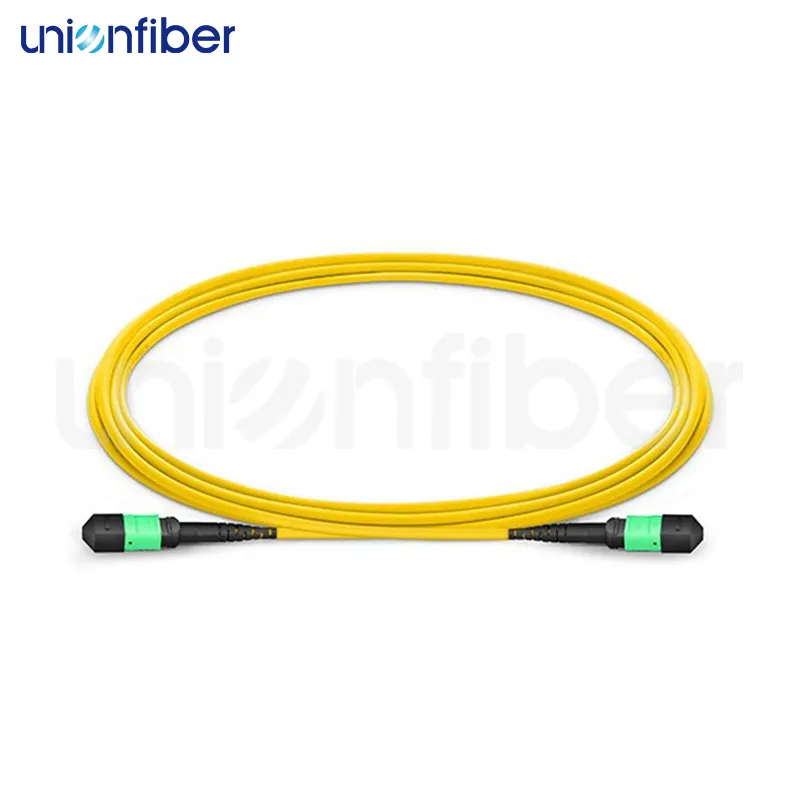

MPO/MTP (Multi fiber Push On/Multi fiber Termination Push on) patch cords are a high-density, multi-core fiber optic connection solution. This product adopts an MPO/MTP connector system, providing efficient and reliable fiber optic connections for applications such as data centers, Fiber to Home (FTTH), broadband access, and telecommunications infrastructure. The design of MPO/MTP patch cord is aimed at meeting the requirements of modern networks for high bandwidth and high-density connections.
Product Features
Product Parameters
|
Project |
Technical indicators |
||||||
|
Product name |
MPO/MTP Fiber Optic Patchcord |
||||||
|
Parameter |
Unit |
SM Standard |
SM Lowloss |
MM Standard |
MM Lowloss |
||
|
Insertion Loss |
Typ |
dB |
0.35 |
0.2 |
0.35 |
0.2 |
|
|
Max |
0.75 |
0.35 |
0.65 |
0.35 |
|||
|
Reture Loss |
dB |
APC≥50 |
/ |
≥25 |
≥35 |
||
|
PC≥40 |
|||||||
|
Repeatability |
dB |
≤0.1 |
|||||
|
Interchangeability |
dB |
≤0.3(Connector Randomly) |
|||||
|
Durability |
dB |
≤0.3(change 500matings) |
≤0.3(change 1000matings) |
||||
|
Vibration |
dB |
≤0.3(10~55Hz) |
|||||
|
Fiber Type |
SM9/125,MM50/125,MM62.5/125,OM3,OM4 |
||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Packaging
The MPO MTP Fiber Optic Patchcord is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
