Outdoor Flat-shape & Self-supporting Uni-tube 2-12 Core GYFXTBY/GYFXBY Fiber Optic Cable

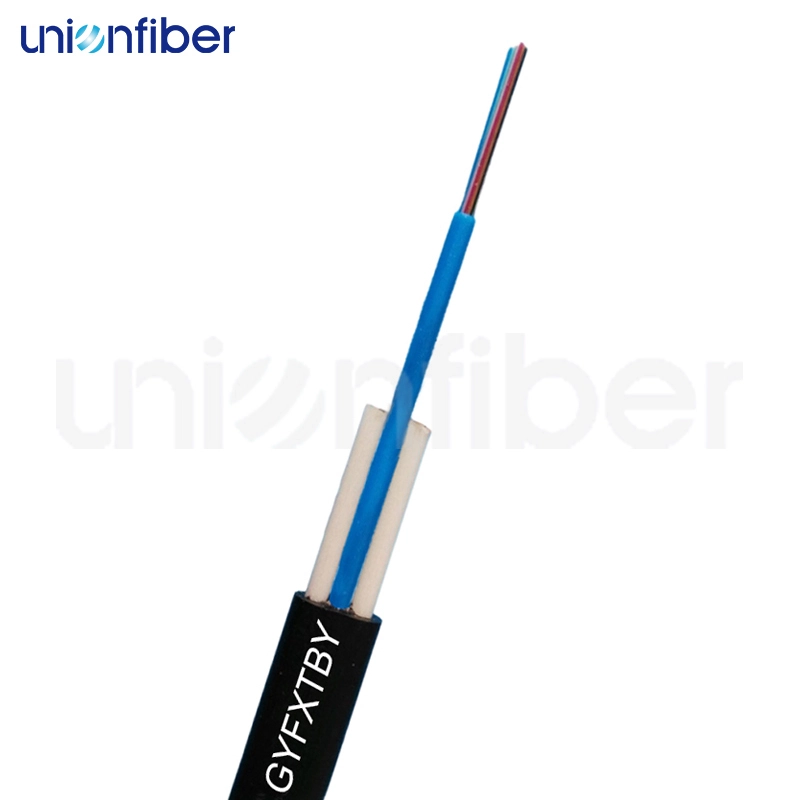

The structure of GYFXBY flat optical cable is to connect 250 μ The optical fiber is inserted into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A layer of waterproof layer may be longitudinally wrapped around the loose tube, with two parallel FRP placed on both sides and extruded into a polyethylene sheath PE cable.
Product Description
The structure of GYFXBY flat optical cable is to connect 250 μ The optical fiber is inserted into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A layer of waterproof layer may be longitudinally wrapped around the loose tube, with two parallel FRP placed on both sides and extruded into a polyethylene sheath PE cable.
Product Features
Product Parameters
| Project | Technical indicators | ||||||||
| Fiber Count | 2-12 | ||||||||
| Loose tube material | PBT | ||||||||
| Outer sheath | PE | ||||||||
| Colored Coating Fiber Dimension | 250±15μm | ||||||||
| Reference weight(Kg/km) | 46 | ||||||||
| Fiber Type | SM G.652D | ||||||||
| Tensile Strength(N) | Long/Short Term:500/1200 | ||||||||
| Crush Resistance(N/10cm) | Long/Short Term:300/1000 | ||||||||
| BendingRadius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+60℃ | ||||||||
| Parameter | Unit | 9/125 SMF-OS2 | 62.5/125 MMF-OM1 | 50/125 MF-OM2 | 50/125 MMF-OM3 | 50/125 MMF-OM4 |
| Attenuation | dB/Km |
1310nm≤0.35 1550nm≤0.22 |
850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 | 850 nm≤3.0 1300 nm≤0.8 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
- | - | - | - |
| Fiber Diameter | um | 9/125 um | 50/125 um | 50/125 um | 50/125 um | 50/125 um |
| Effective Modal Bandwidth | EMB | - | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 | 850 nm≥200 |
| Zero Dispersion Wavelength | Nm | 1300-1324 | - | - | - | - |
| Zero Dispersion Slope | Ps/nm.km | ≤0.095 | - | - | - | - |
| Fiber Cutoff Wavelength | Um | ≤1260 | - | - | - | - |
| Mode Field Diameter | Um |
@1310nm-9.2±0.4 @1550nm-10.4±0.8 |
- | - | - | - |
| Mode Field Concentricity | Um | ≤0.8 | - | - | - | - |
| Cladding Diameter | Um | 125±1.0 | 125±2.0 | 125±2.0 | 125±2.0 | 125±2.0 |
| Cladding Non-circularity | % | ≤1.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Concentricity Error | Um | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 | ≤12.5 |
| Coating Diameter | dB/Km | 245±10 | 245±10 | 245±10 | 245±10 | 245±10 |
Application
Product Diagram
packaging
The ADSS optical cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.
