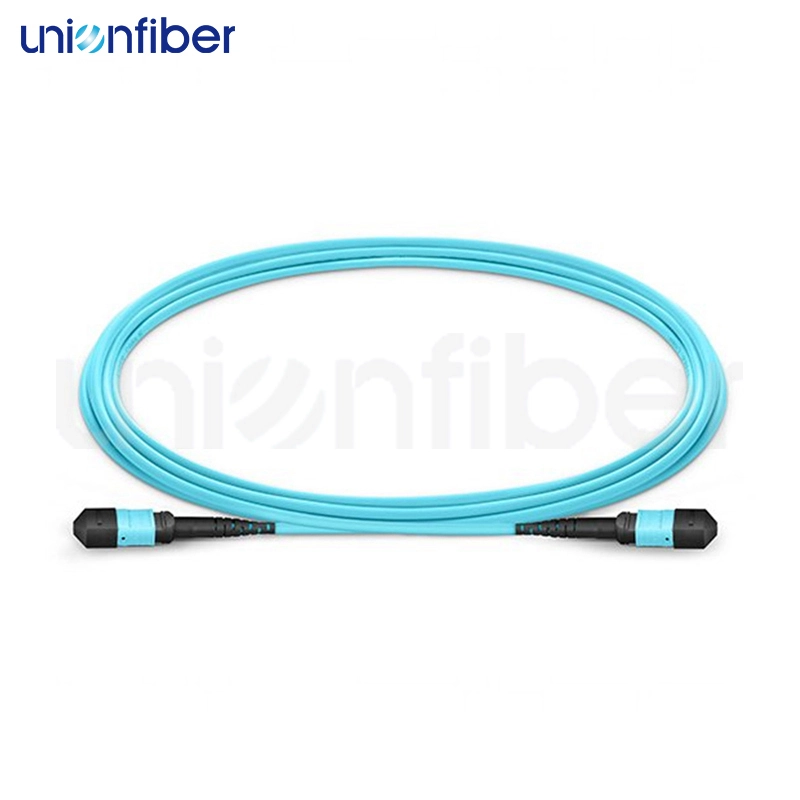

MPO MTP Fiber Optic Patchcord

MPO/MTP (Multi fiber Push On/Multi fiber Termination Push on) patch cords are a high-density, multi-core fiber optic connection solution. This product adopts an MPO/MTP connector system, providing efficient and reliable fiber optic connections for applications such as data centers, Fiber to Home (FTTH), broadband access, and telecommunications infrastructure. The design of MPO/MTP patch cord is aimed at meeting the requirements of modern networks for high bandwidth and high-density connections.

    oops...!

    no product data.

    Go to homepage

    Product Description

    MPO/MTP (Multi fiber Push On/Multi fiber Termination Push on) patch cords are a high-density, multi-core fiber optic connection solution. This product adopts an MPO/MTP connector system, providing efficient and reliable fiber optic connections for applications such as data centers, Fiber to Home (FTTH), broadband access, and telecommunications infrastructure. The design of MPO/MTP patch cord is aimed at meeting the requirements of modern networks for high bandwidth and high-density connections.



    Download
    MPO MTP Fiber Optic Patchcord (1)

    Product Features

    MPO MTP Fiber Optic Patchcord 5
    01
    Efficient transmission: MPO/MTP patchcord adopt a multi-core design, which can simultaneously transmit multiple signals, improving data transmission efficiency and bandwidth utilization.
    MPO MTP Fiber Optic Patchcord 6
    02
    Space saving: The high-density connection design allows MPO/MTP patchcord to provide more fiber optic connections in limited space, effectively saving wiring space and costs.
    MPO MTP Fiber Optic Patchcord 7
    03
    Flexible Expansion: MPO/MTP patchcord support multiple fiber types and connector standards, making it convenient for users to flexibly expand and upgrade according to their actual needs.
    MPO MTP Fiber Optic Patchcord (3)
    04
    Easy to manage: With standard connector and interface design, MPO/MTP patchcord are easy to manage and maintain, reducing operational costs.

    Product Parameters

    Project

    Technical indicators

    Product name

    MPO/MTP Fiber Optic Patchcord

    Parameter

    Unit

    SM Standard

    SM Lowloss

    MM Standard

    MM Lowloss

    Insertion Loss

    Typ

    dB

    0.35

    0.2

    0.35

    0.2

    Max

    0.75

    0.35

    0.65

    0.35

    Reture Loss

    dB

    APC≥50

    /

    ≥25

    ≥35

    PC≥40

    Repeatability

    dB

    ≤0.1

    Interchangeability

    dB

    ≤0.3(Connector Randomly)

    Durability

    dB

    ≤0.3(change 500matings)

    ≤0.3(change 1000matings)

    Vibration

    dB

    ≤0.3(10~55Hz)

    Fiber Type

    SM9/125,MM50/125,MM62.5/125,OM3,OM4

    Parameter Unit 9/125 SMF-OS2 62.5/125 MMF-OM1 50/125 MF-OM2 50/125 MMF-OM3 50/125 MMF-OM4
    Attenuation dB/Km

    1310nm≤0.35

    1550nm≤0.22

    850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8 850 nm≤3.0 1300 nm≤0.8
    Dispersion Ps/nm.km

    1285~1330nm≤3.5

    1550nm≤18.0

    - - - -
    Fiber Diameter um 9/125 um 50/125 um 50/125 um 50/125 um 50/125 um
    Effective Modal Bandwidth EMB - 850 nm≥200 850 nm≥200 850 nm≥200 850 nm≥200
    Zero Dispersion Wavelength Nm 1300-1324 - - - -
    Zero Dispersion Slope Ps/nm.km ≤0.095 - - - -
    Fiber Cutoff Wavelength Um ≤1260 - - - -
    Mode Field Diameter Um

    @1310nm-9.2±0.4

    @1550nm-10.4±0.8

    - - - -
    Mode Field Concentricity Um ≤0.8 - - - -
    Cladding Diameter Um 125±1.0 125±2.0 125±2.0 125±2.0 125±2.0
    Cladding Non-circularity % ≤1.0 ≤2.0 ≤2.0 ≤2.0 ≤2.0
    Coating/Cladding Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
    Concentricity Error Um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
    Coating Diameter dB/Km 245±10 245±10 245±10 245±10 245±10

    Application

    Fiber Patch Cord 1
    Long haul trunk,metro and access system.
    Fiber Patch Cord 2
    Long haul trunk,metro and access system.
    Fiber Patch Cord 3
    CATV and fber network system.
    Fiber Patch Cord 4
    CATV and fber network system.

    Product Packaging

    The MPO MTP Fiber Optic Patchcord is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.
