Professional Custom Fiber Optic Cable Manufacturer And Supplier Since 2014.

Fiber Protection Box 1 in 1 out 1
Fiber Protection Box 1 in 1 out 2
Fiber Protection Box 1 in 1 out 3
Fiber Protection Box 1 in 1 out 1
Fiber Protection Box 1 in 1 out 2
Fiber Protection Box 1 in 1 out 3

Fiber Protection Box 1 in 1 out

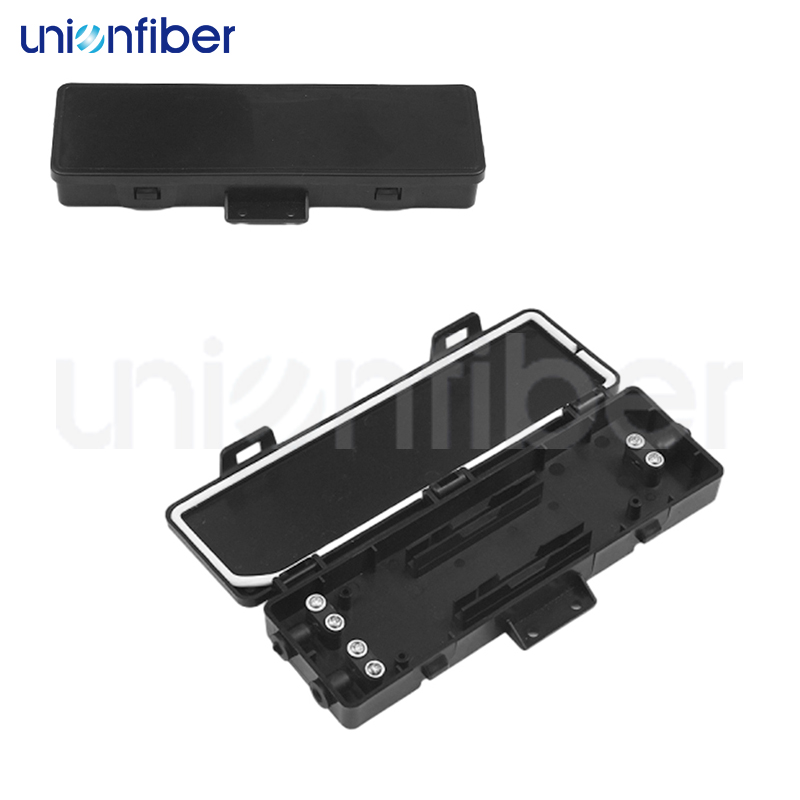

Mini Drop Cable Protect Box is used for drop cable connecting, splice and protection. It can hold 1pc SC simplex adapter, 2pcs SC fast connectors, suitable for FTTH. it is compact size, good appearance,provides extremely economical and optimal protection for exposed single fiber connectors.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Drop Cable Protect Box is used for drop cable connecting, splice and protection. The cable connection protection box for 1 in 1 out, for 2.0mm Fiber cable, 3.0mm Fiber cable  Material: new ABS flame retardant, quality assurance, flame retardant performance in line with the communications industry standards, flame retardant grade UL94V-0.

    Fiber cable Protection Box is used for drop cable connecting, splice and protection.Inside can install 1pc SC simplex adapter and 2pcs fast connector connection. The box is made of High quality ABS Material.Box cover and bottom utilize silicone rubber ring sealing. Both sides can lead in/out 2*3mm FTTH drop cable or 3mm round cable.Wall-mount application,two installation hole distance is 150mm.

    Download
    1 Fiber Protection Box 1 in 1 out

    Product Features

    Fiber Protection Box 1 in 1 out 5
    01
    Made of high-quality PP plastic, silicone ring seal between the cover and the bottom.
    Fiber Protection Box 1 in 1 out 6
    02
    Both ends can go in and out of 2mm*3mm FTTH cable or 3mm round cable.
    1 (24)
    03
    Protection class IP65.
    2 (24)
    04
    Light weight,compact size, can stick on wall anywhere with double faced adhesive tape or wall mounted.
    3 (17)
    05
    Small size, nice shape, convenient Installation.
    4 (16)
    06
    Splice contact protection is stable&reliable,Protect it from damage or broken by external force.

    Product Parameters

    Project

    Technical indicators

    Product name

    Fiber Protection Box 1in1out

    Lock type

    Push lock or tubular lock

    Material

    ABS&PC alloy material

    Dimensions(L*W*H )

    160*46*17 mm

    Capacity of Fiber

    1 Fiber

    Capacity of Splice

    1 Core

    Suitable Adapter

    SC

    Color

    White or Black

    Application

    Intermediate connection of optical cable lines. Protection of fiber optic cable branch points. Fiber optic cable protection in outdoor and harsh environments. The application of FTTH system. Fiber optic protection for data centers and communication rooms.

    产品应用场景图 水1
    产品应用场景图 水1
    产品应用场景图 水2
    产品应用场景图 水2
    产品应用场景图 水3
    产品应用场景图 水3
    产品应用场景图 水4
    产品应用场景图 水4

    Product Packaging

    The Fiber Protection Box 1 in 1 out is packed in a PVC bag inside a cardboard box. We support OEM and ODM, catering to either production following your provided design or the creation of a completely customized product from the ground up.

    1 Fiber Protection Box 1 in 1 out+package
    1 Fiber Protection Box 1 in 1 out+package
    2 1 Fiber Protection Box 1 in 1 out+package
    2 1 Fiber Protection Box 1 in 1 out+package
    Let's talk about your project now.

    We are a professional manufacturer of fiber optic products, Our optical cables are mainly divided into indoor optical cables and outdoor optical cables.

    Standard Production Procedure, High Standard Test Requriment, Strict QC, 100% Inspection at Each Procedure.

    We have ISO certificate for our company and product, we have CPI certificate for EU market.

     Long Time Warranty, Fiber Cable Life-time After Service.

    OEM & ODM, Samples Available in 1~3 days.

    Excellent global market competitiveness.
