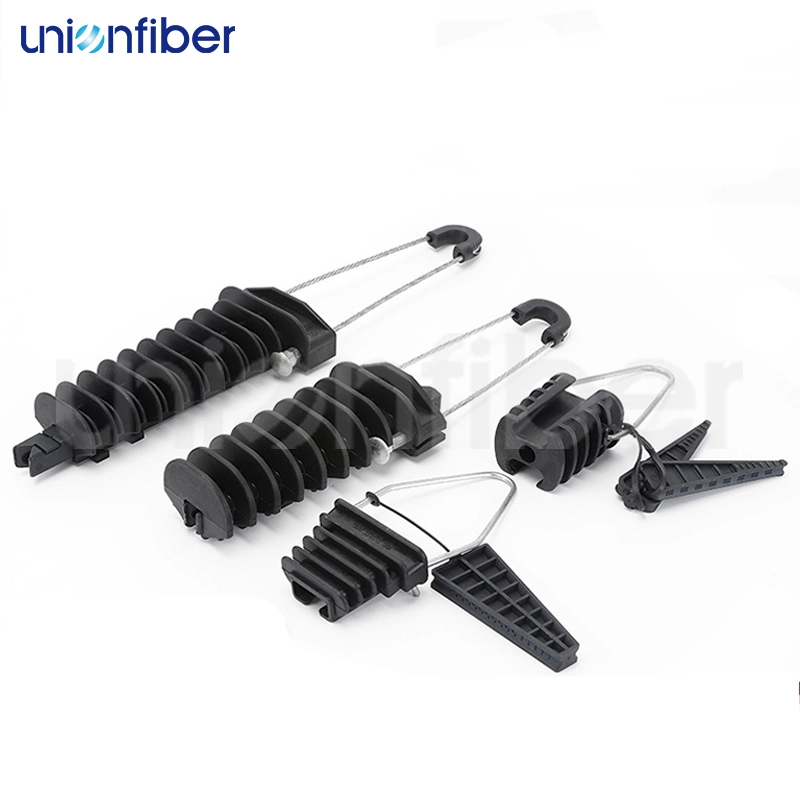

Fiber Optic Dead End Plastic/Aluminium Wedge Tension Clamp For ADSS Cable PA1500 PA2000 PA3000
The Wedge type Tension Clamp for ADSS conductor is expertly designed. It anchors insulated service lines with 2 or 4 conductors to poles or walls.
Product Description
The Wedge type Tension Clamp for ADSS conductor is expertly designed. It anchors insulated service lines with 2 or 4 conductors to poles or walls. Comprised of a body, wedges, and a removable, adjustable bail or pad.
The PA series Anchor clamps support the neutral messenger with self-adjusting wedges. Pilot wires or street lighting conductors can be led alongside. It features an integrated spring for self-opening, making it easy to insert the conductor. Durable and reliable, it ensures secure anchoring for various applications.
Product Features
Product Parameters
|
Project |
Technical indicators |
|
Product name |
PA1500 PA2000-Wedge clamp |
|
Processing technology |
Stamping+injection molding+assembly |
|
Material quality |
SS201+PA66 (Stainless steel, nylon) |
|
Overall weight |
520g |
|
Dimensions |
Length: 470mm/pull ring length 260mm, wire diameter 4.0mm |
|
Application |
ADSS fiber optic cable wiring |
|
Type |
Overhead Line Accessories |
|
Pulling |
6-7KN |
|
Using wire diameter |
Cable diameter 11-15mm |
|
Packaging requirements |
50 pieces/box |
Application
For ADSS fiber optic cable wiring, wedge tension clamp are crucial. They grip the cable between towers, provide tension support and resist natural forces, ensuring stability and signal transmission. They create a unique sight with the cable.
Working procedure
packaging
The packaging of wedge tension clamp is designed for protection and convenience. Sturdy materials ensure safe transportation, and clear labeling makes identification easy. Compact design saves space and facilitates storage and handling.
