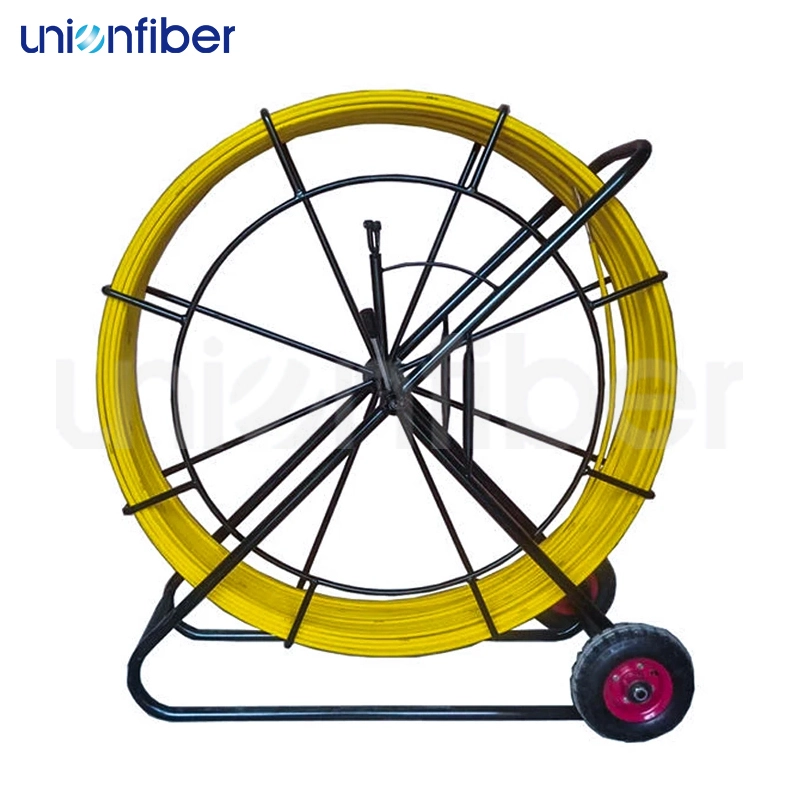

Cable Puller Fiber Optic Fiberglass Push Duct Rodders are mainly used for pulling guide ropes in pipelines, as well as laying communication cables, power cables, network cables, videos, etc. They are easy to operate and can greatly improve work efficiency. High strength fiberglass rods have very high tensile strength while maintaining flexible bending performance. The threading device is mainly made of fiberglass and high-strength resin, which are extruded into fiberglass rods at high temperatures. The outer surface of the fiberglass rod is made of highly polyethylene engineering plastic, and the protective layer of the production layer makes the surface of the threading device smooth, enhances wear resistance, aging resistance, and acid alkali resistance. The diameter range of the threading device is 4.5mm-18mm, and the length range is 10m-500m.
Product Description
Cable Puller Fiber Optic Fiberglass Push Duct Rodders are mainly used for pulling guide ropes in pipelines, as well as laying communication cables, power cables, network cables, videos, etc. They are easy to operate and can greatly improve work efficiency. High strength fiberglass rods have very high tensile strength while maintaining flexible bending performance. The threading device is mainly made of fiberglass and high-strength resin, which are extruded into fiberglass rods at high temperatures. The outer surface of the fiberglass rod is made of highly polyethylene engineering plastic, and the protective layer of the production layer makes the surface of the threading device smooth, enhances wear resistance, aging resistance, and acid alkali resistance. The diameter range of the threading device is 4.5mm-18mm, and the length range is 10m-500m.
Product Features
Product Parameters
Project |
Technical indicators |
Product name |
Cable Puller Fiber Optic Fiberglass Push Duct Rodders |
Wire diameter |
Ф4.5mm、Ф6mm、Ф9mm、Ф10mm、Ф11mm、Ф12mm、Ф13mm、Ф14mm、Ф15mm、Ф16mm、Ф17mm、Ф18mm |
Line length |
10m-500m (customizable) |
Bending radius |
330mm |
Fiber density |
210kg/m |
Fracture tensile force |
4200kg |
Applicable temperature range |
-40℃~+80℃ |
Bracket size classification |
(1200mmx420mmx1220mm)、(680mmx240mmx700mm) |
Application
Mainly used for pulling guide ropes in pipelines, as well as laying communication cables, power cables, network cables, videos, etc.
Product Packaging
The packaging of wedge tension clamp is designed for protection and convenience. Sturdy materials ensure safe transportation, and clear labeling makes identification easy. Compact design saves space and facilitates storage and handling.
We are a professional manufacturer of fiber optic products, Our optical cables are mainly divided into indoor optical cables and outdoor optical cables.
● Standard Production Procedure, High Standard Test Requriment, Strict QC, 100% Inspection at Each Procedure.
● We have ISO certificate for our company and product, we have CPI certificate for EU market.
● Long Time Warranty, Fiber Cable Life-time After Service.
● OEM & ODM, Samples Available in 1~3 days.
● Excellent global market competitiveness.
