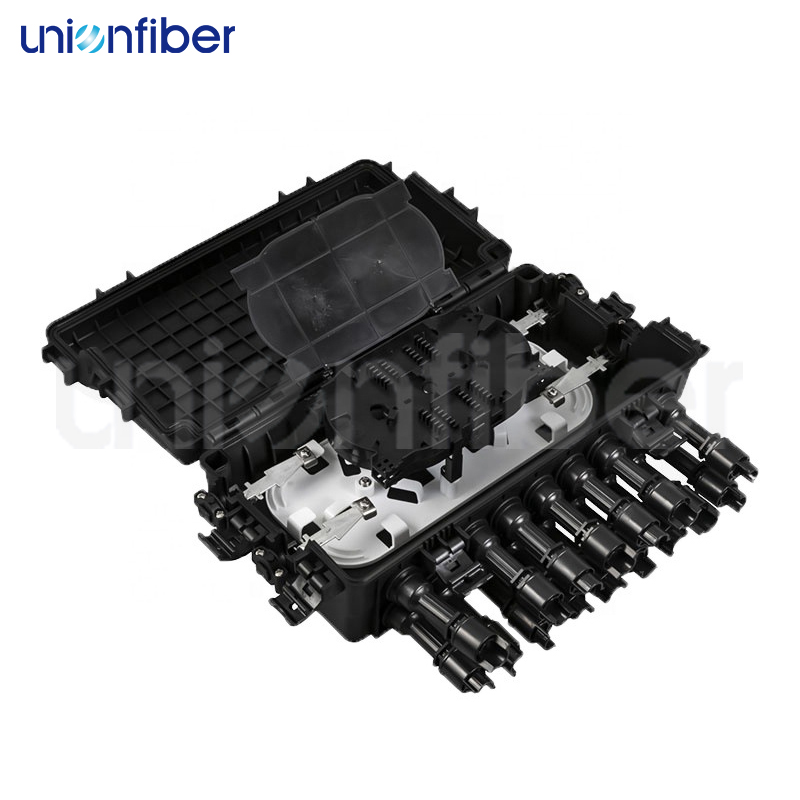

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 1

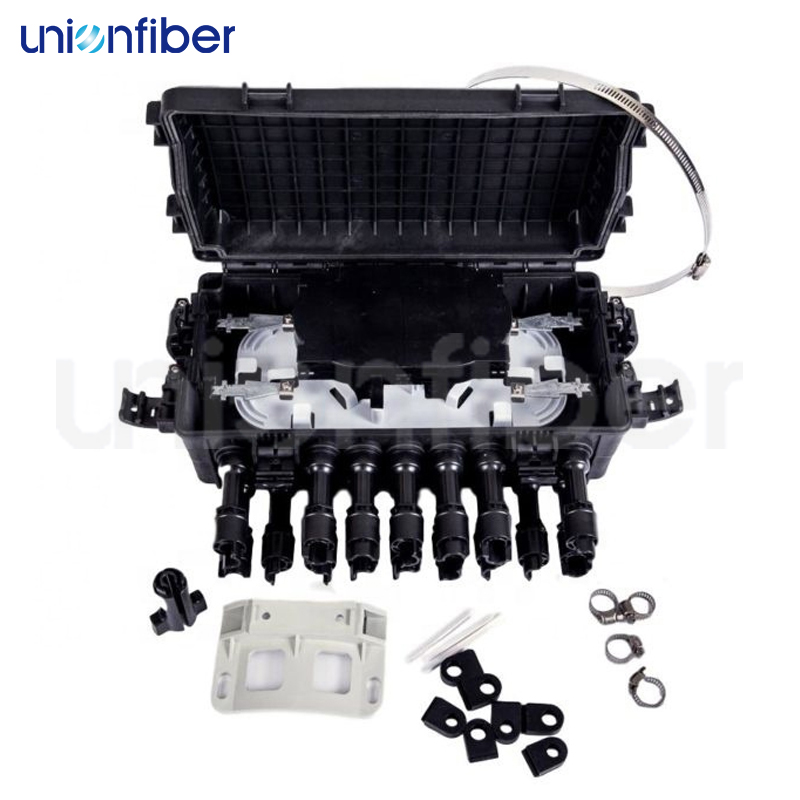

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 2

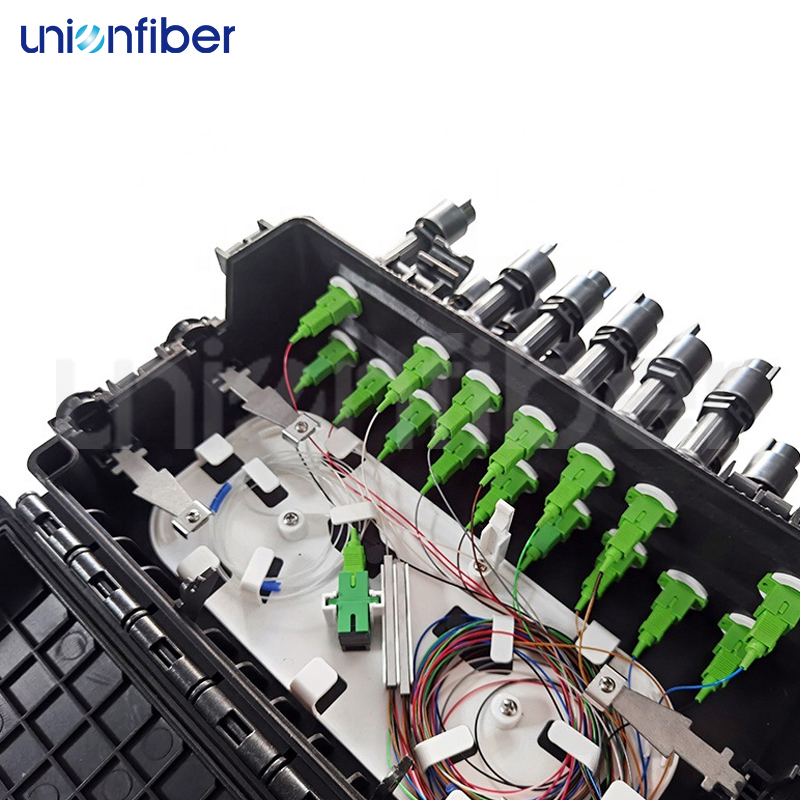

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 3

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure

Fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 2 trays to splice total 48fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Product Name:

Fiber Optic Splice Closure

Trays:

Total Capacity (fibers):

Tray capacity:

Brand Name:

Weunion/Unionfiber

Delivery Time:

3-15 Working Days

Certification:

ISO9001,ROHS,CE,CPR

Place of Origin:

China

Inquiry

Write a Review

Product Description

Download

Product Features

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 5

Excessive fibers can be stored in storage baskets. Easy in fiber management.

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 6

Excessive fibers can be stored in storage baskets. Easy in fiber management.

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 7

Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 8

Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 9

The inner parts and fixing parts are made of stainless steel .

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 10

With a earthing device protect it from damage by lightning .

Product Parameters

Project	Technical indicators (Span 100m)
Product name	1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure
Trays	2
Tray Capacity	24
Total Capacity (fibers)	48
Dimension(mm)	359277120
Entry Port dia	2 inlets and 2 outlets <25mm 16round ports for drop cable
Raw material	Dome & base : Modified P.P +GF Tray: ABS
Sealing Method	Mechanical and heat-shrinkable seals

Application

Direct Burial

Direct Burial Fiber Cable,direct buried cable are more solid.be able to withstand dust, pressure or rodent chewing

Pipe

Suitable for smart grid applications, enabling real-time monitoring and control of power grids

Overhead

Widely used in power transmission and distribution systems for communication between substations and control centers

Underwater

Can withstand harsh outdoor conditions and provide reliable high-speed data transmission in power and telecommunications industries

Product Diagram

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 15

1x16 Core Wall-mounted or Pole-mounted Fiber Optic Splice Closure 16

packaging

The ADSS optical cable is packaged on wooden spools. We offer OEM services and can print your logo for free. The wooden spool ensures safety and is easy to handle.

包装图2

室外光缆包装
